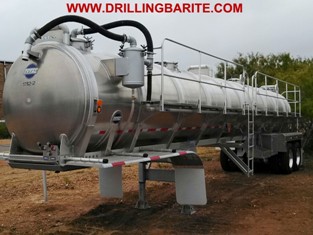

ALUMINUM VACUUM TANKS

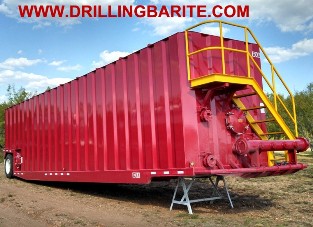

FRAC TANKS |
CRUDE OIL TANKS |
DRY BULK TANKS |
TYTAL PRODUCTS |CREDIT
APPLICATION
BARITE SILO TANK |
BARITE HAULING AND STORAGE | BARITE SILO MANUFACTURING
PRESSURE WASHERS
DIESEL OR ELECTRIC BLOWERS, CLICK HERE
PNEUMATIC DRY BULK TRAILER
Aluminum or Steel
Want to
start your own business? Give us a call,
we can help!
PRESSURE WASHER TO CLEAN YOUR TANKS,
CLICK HERE!

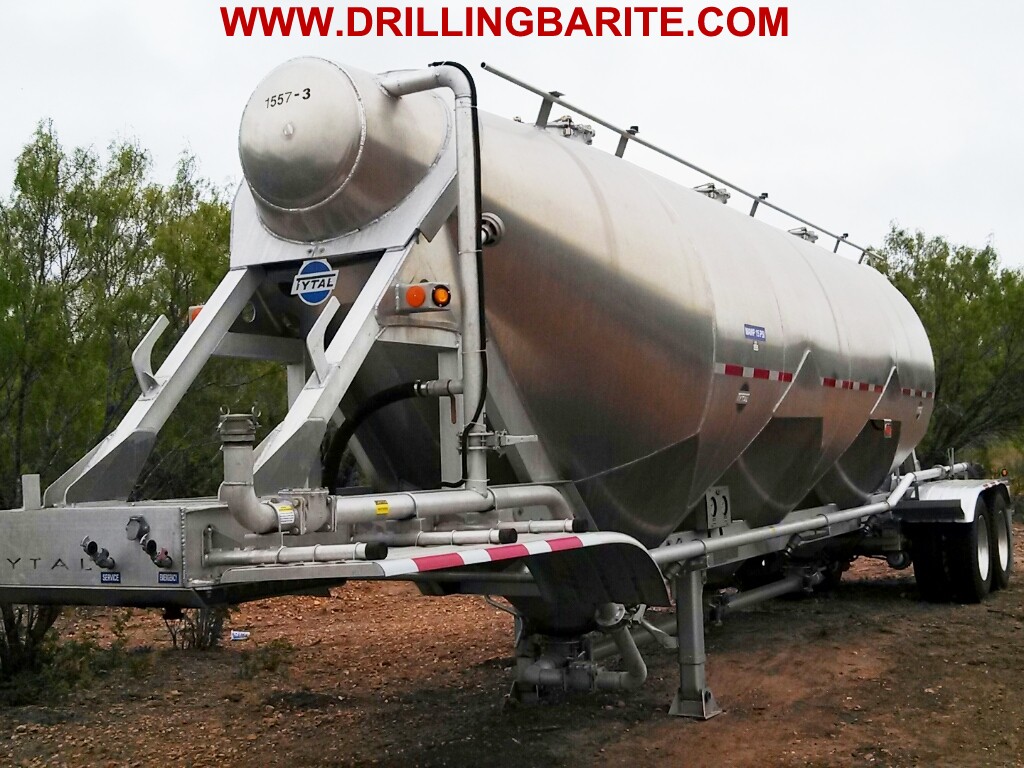

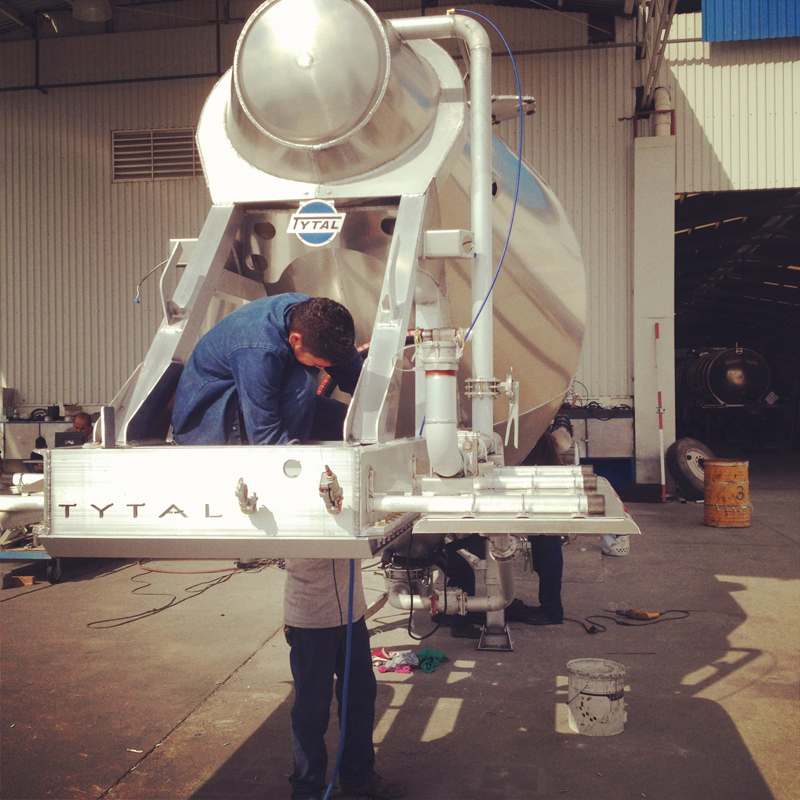

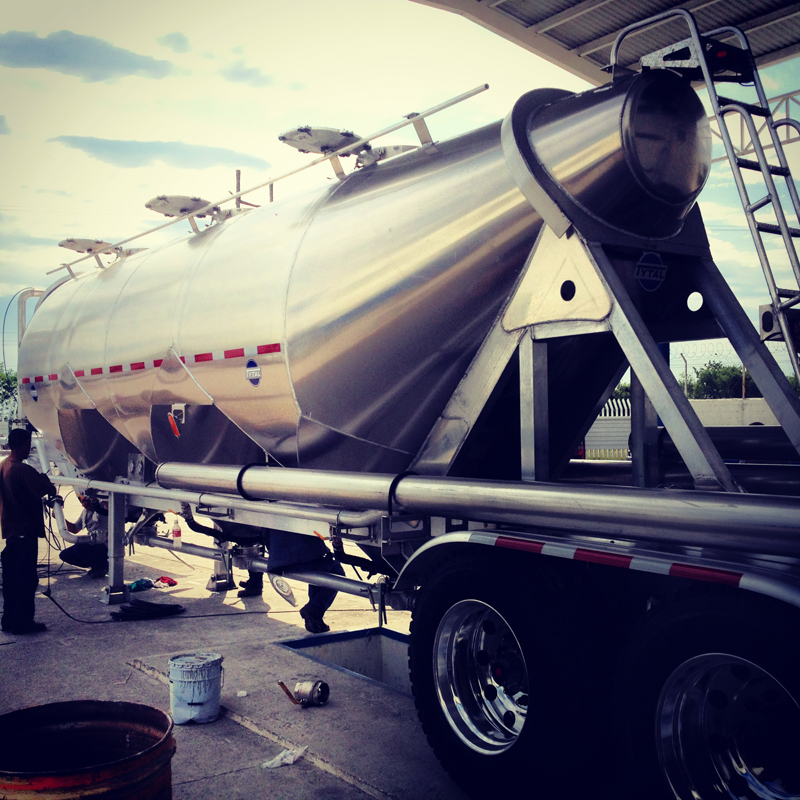

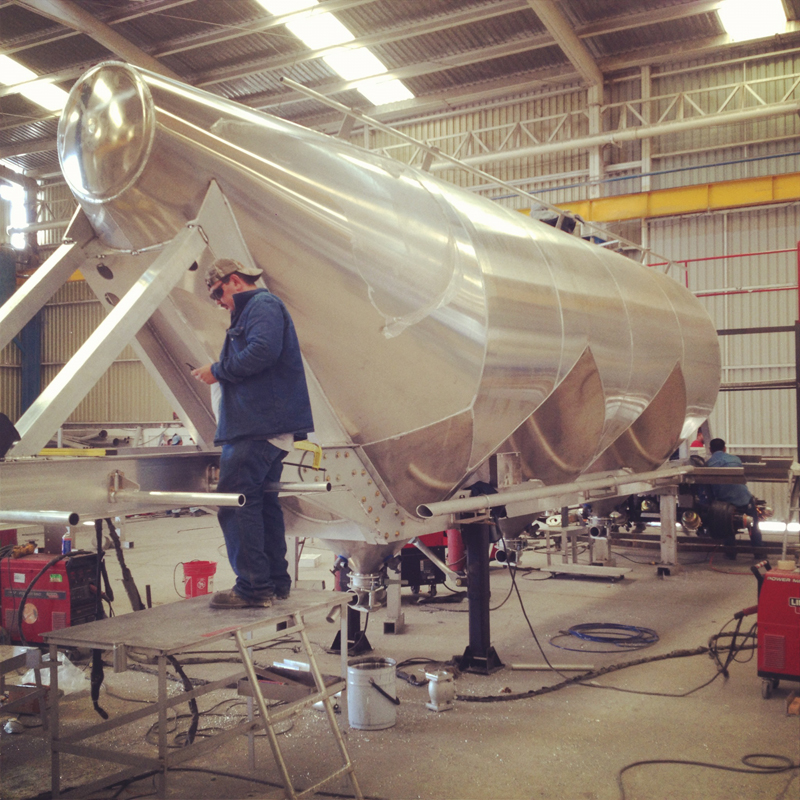

PNEUMATIC DRY BULK TRAILER
PNEUMATIC DRY BULK TRAILER
PNEUMATIC DRY BULK TRAILER
PNEUMATIC DRY BULK TRAILER
PNEUMATIC DRY BULK TRAILER
|

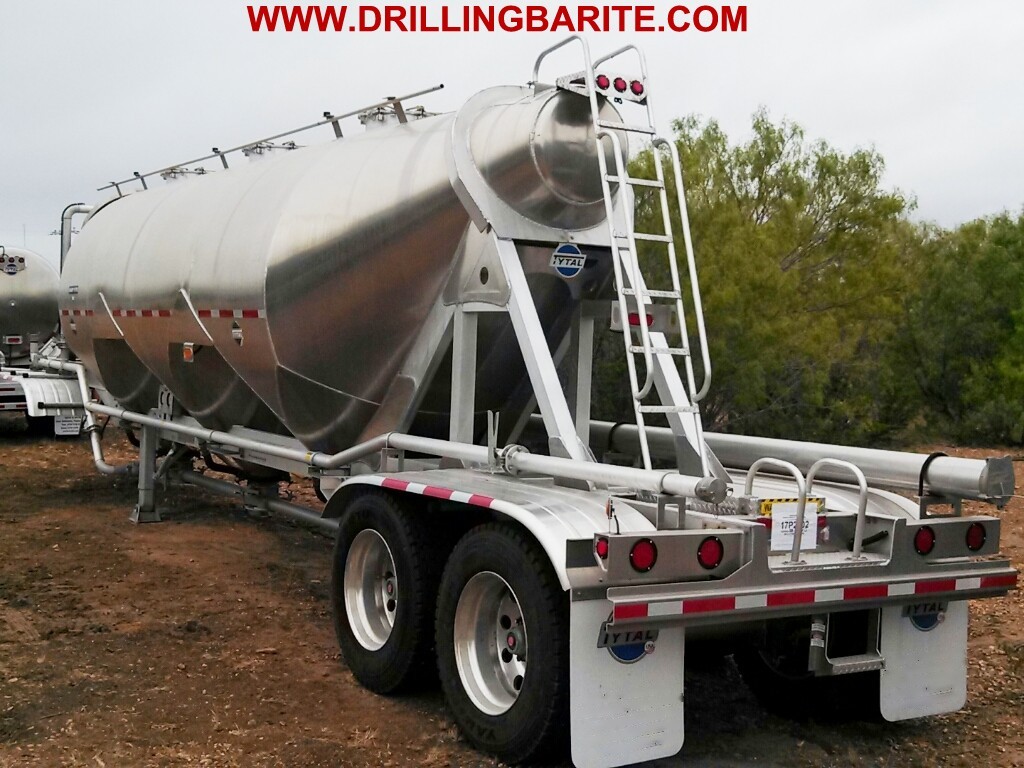

PNEUMATIC DRY BULK TRAILER Basic Unit Hopper's body in aluminum 5454-H32 caliber 3/16" with diagonal reinforcements of PTR 4X4 in both endpoints and three inferiors cones of 1/4" (thickness), to transport low density solids.Capacity 30 Cubic Meters, 1060 Cu/Ft. Suspension Hendrickson air suspension model Intraax 30/25 lbs. or Meritor with integrated shaft (two axles) 30/30 spring brakes 8 automatic slack adjusters. Dimensions Length 42' by 96" width. Chassis Made in structural aluminum 6061-T6 for front and back chassis. Paint On steel parts only. Kingpin Plate 3/8" Carbon Steel grade 50 5/16" and King pin Holland 2". Ladder Anti-Slip aluminum rear access ladder. Air supply Piping, one air line 3" placed on the copilot side of the tank with 4" butterfly valve. Fenders 2 Aluminum double contour rear fenders, and 2 front fenders. Landing Gear One pair of Jost. Baffles 2 Baffles 3/8" (thickness) type ring dividers. Manhole Three 20" cast aluminum manhole LM1310 Knappco brand, heavy duty set with 6 adjustable hold-downs. Discharge One discharge, hopper tee of 4" and aluminum butterfly valve of 5". ABS 16 x 7 easy change and system whit ABS Meritor-Wabco, modelo 2s/1m. Hose Carrier Two aluminum 8" x 20' with back cover (hinged gate) in cast aluminum with 8" cast aluminum hose carrier caps. Electrical System DOT LED lamp system. Mud Flaps Two mud guards printed with Tytal's Brand. Accessories: Two hose carrier hooks at front. |
| If you don't see what you need, please let us know, we can custom make it to your specifications.! |
If you are looking for one, or one hundred tanks, let us know, please contact us for a quick quote.
We have the best prices available anywhere!
