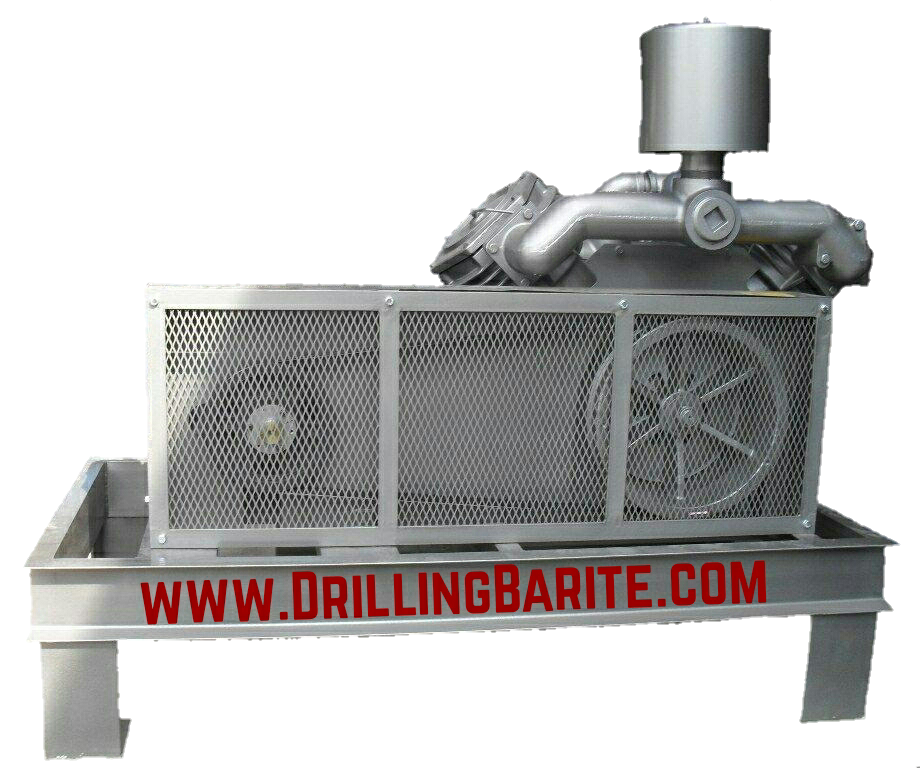

- GARDNER DENVER RECIPROCATING COMPRESSOR -
MODEL: APO-30HP-STANDARD
* Compressor package for pressure and vacuum that includes:
* Reciprocating low pressure Compressor, for pressure and vacuum
operation,
GARDNER DENVER brand, model: APOGAA, with the following
features:
*Diameter: 7 -7/8” X 7-7/8”
*Stroke: 4-1/2”
* Suction and discharge pipe size: 3” NPT
* Dimensions: 41” x 29” x 30”
* Weight: 750 Pounds
- Pressure conditions –
* Max operating speed: 1072 rpm
* Max Power consumption: 30 BHP
* Max Pressure: 60 Psig
* FAD @ 30 Psig: 205 cfm
- Vacuum conditions –
* Max operating speed: 937 rpm
* Max Power consumption: 10 BHP
* Max Vacuum: 28” HG
* Electric motor TEFC, 230/460 Volts, 60 Hz, 3 Phases, service
factor: 1.15, 30 H.P.,
NEMA B, Class F, IP 55, Frame: 286TS, 1800 rpm.
* Structural steel base for compressor and electric motor with
tensioning stud.
* Power transmission through belts and pulleys with guard
* Integrated piping with pressure relief valves, check valve,
pressure gauge in
glycerin bath, set of aluminum fast connections with plug, and
air filter.
* Assembly, testing and painting Total of Package.
OPTIONAL ACCESSORIES:
* Full voltage starter for electric motor, at 440 volts, 60 hz,
3 phases.
* 50 meters (160 ft) of electric cable with integrated plug
|

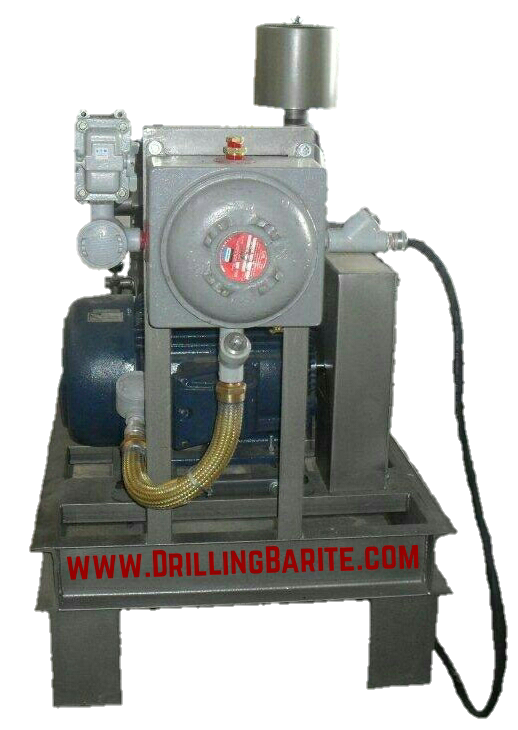

- GARDNER DENVER
RECIPROCATING COMPRESSOR -
MODEL:
APO-30HP - EXPLOSION PROOF |
|
Reciprocating low pressure Compressor,
for pressure and vacuum operation, GARDNER DENVER brand,
model: APOGAA, with the following features:
* Bore
diameter: 7 -7/8" X 7-7/8"
*
Stroke: 4-1/2"
*
Suction and discharge pipe size:
3" NPT
*
Dimensions: 41" x 29" x 30"
* Weight:
750 Pounds
- Pressure conditions –
* Max
operating speed: 1072 rpm
* Max
Power consumption: 30 BHP
* Max
Pressure: 60 Psig
* FAD @
30 Psig: 205 cfm
- Vacuum conditions –
* Max
operating speed: 937 rpm
* Max
Power consumption: 10 BHP
* Max
Vacuum: 28" HG
*
Electric motor, TEFC, 230/460 Volts, 60 Hz, 3 Phases,
service factor: 1.15, 30 H.P., NEMA B, Class F, IP 55,
Frame: 286TS, 1800 rpm.
* Structural steel base for compressor and electric
motor with tensioning stud.
* Power transmission through belts and pulleys with
guard
*
Integrated piping with pressure relief valves, check
valve, pressure and vacuum gauge in glycerin bath, set
of aluminum fast connections with plug, and air filter.
* Assembly, testing and painting Total of Package.
OPTIONAL ACCESSORIES:
* Full
voltage starter for electric motor, at 440 volts, 60 hz,
3 phases.
* 50 meters (160 ft) of electric cable with
integrated plug
* Other models and capacities available, please inquire.
* Custom made to your specs. |
|
 |
