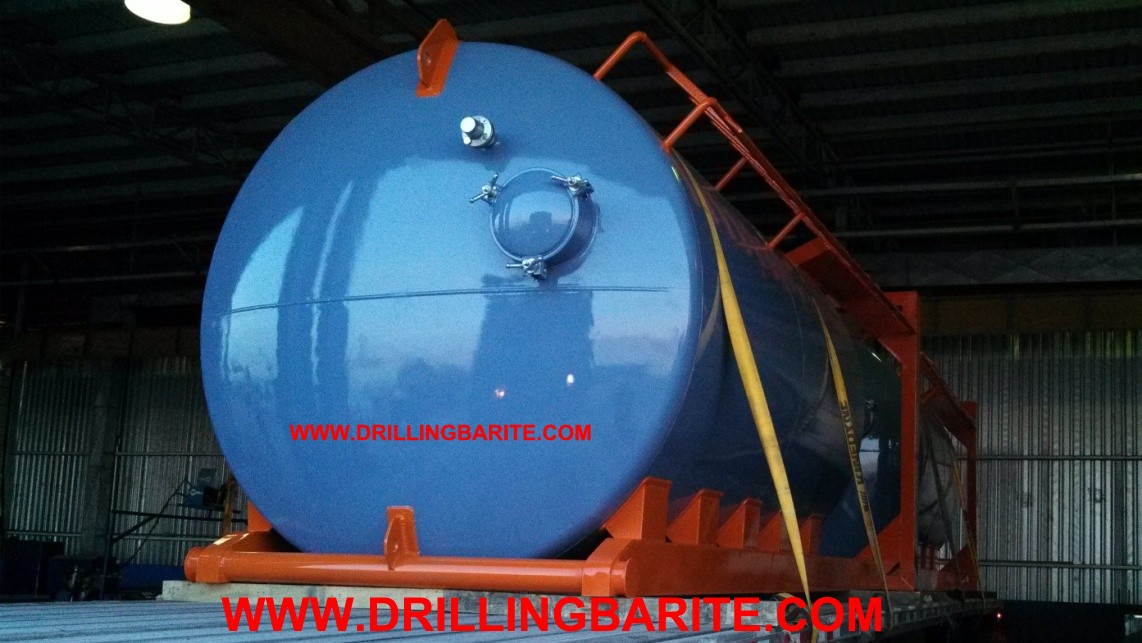

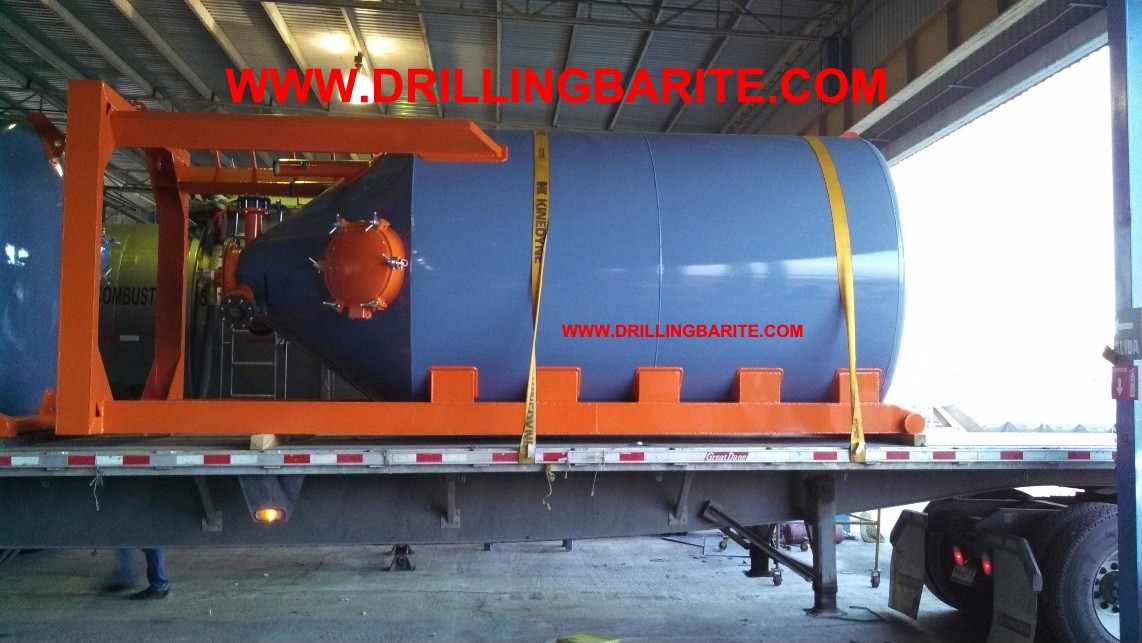

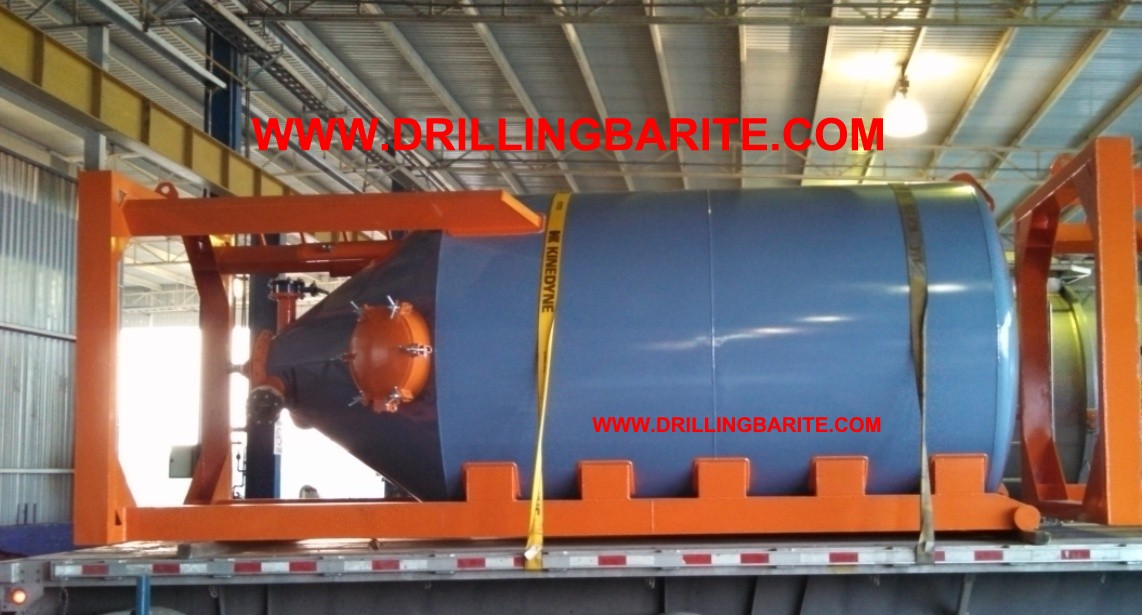

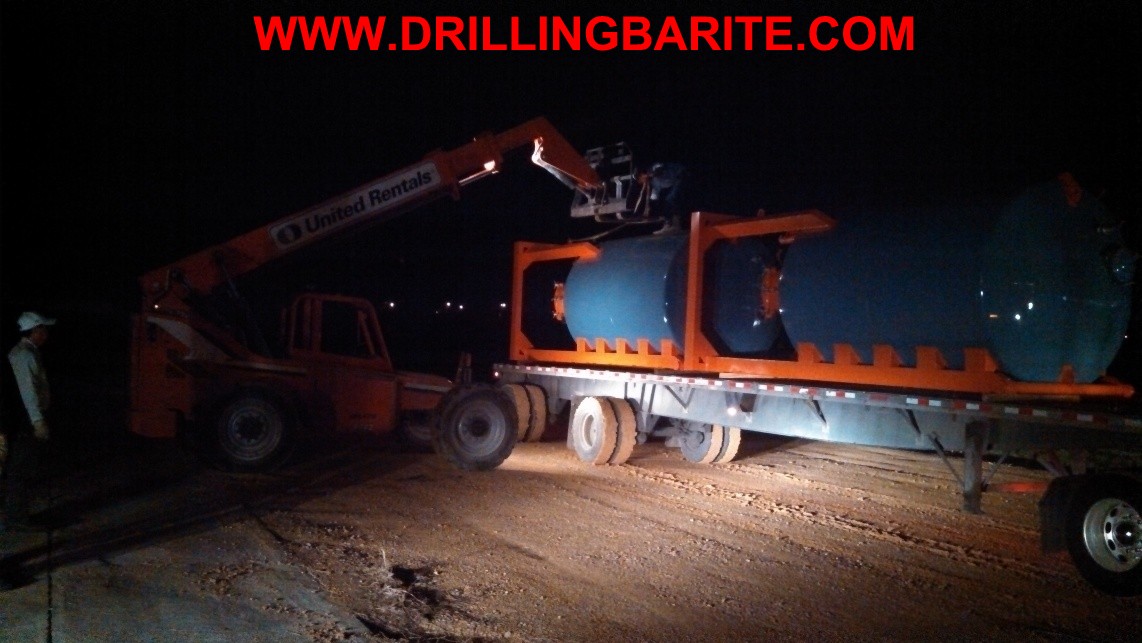

530 Cu.Ft. BARITE SILO TANK

500 + SACK BARITE TANK

SPECIFICATIONS

   Basic Unit                 Heavy Duty Steel Construction Shell,constructed of 8"x 4" HHS Grade B. platform
                                    with cone in heavy duty steel construction and convex cover in heavy duty steel.
   Shell                         1/4" AH-50 rolled cylinder
   Head                        1/4" AH-50 convex

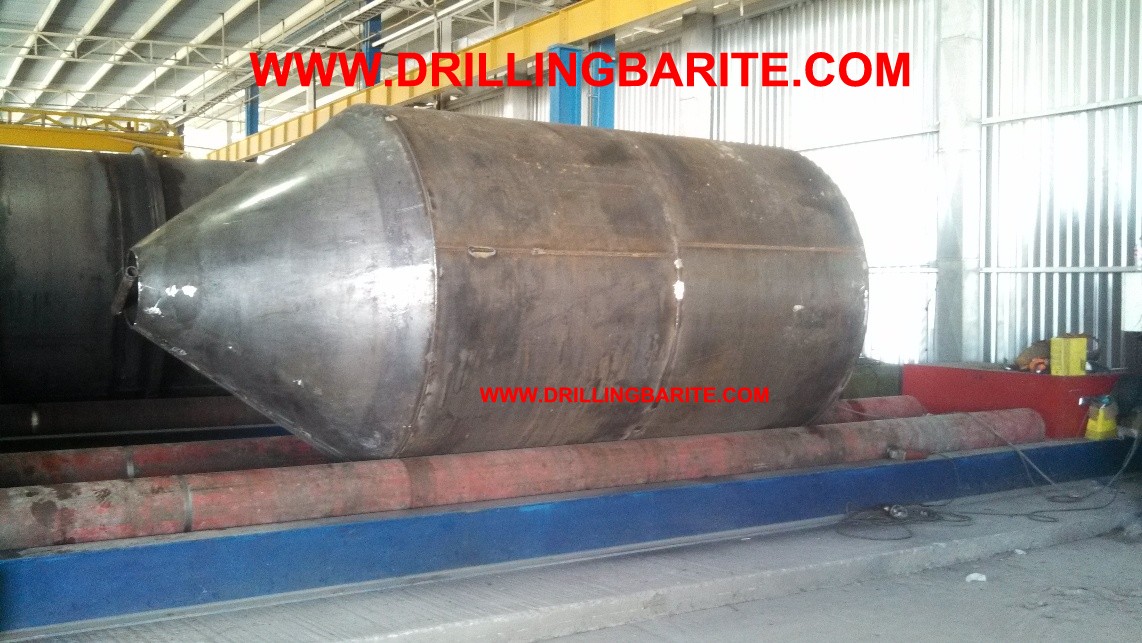

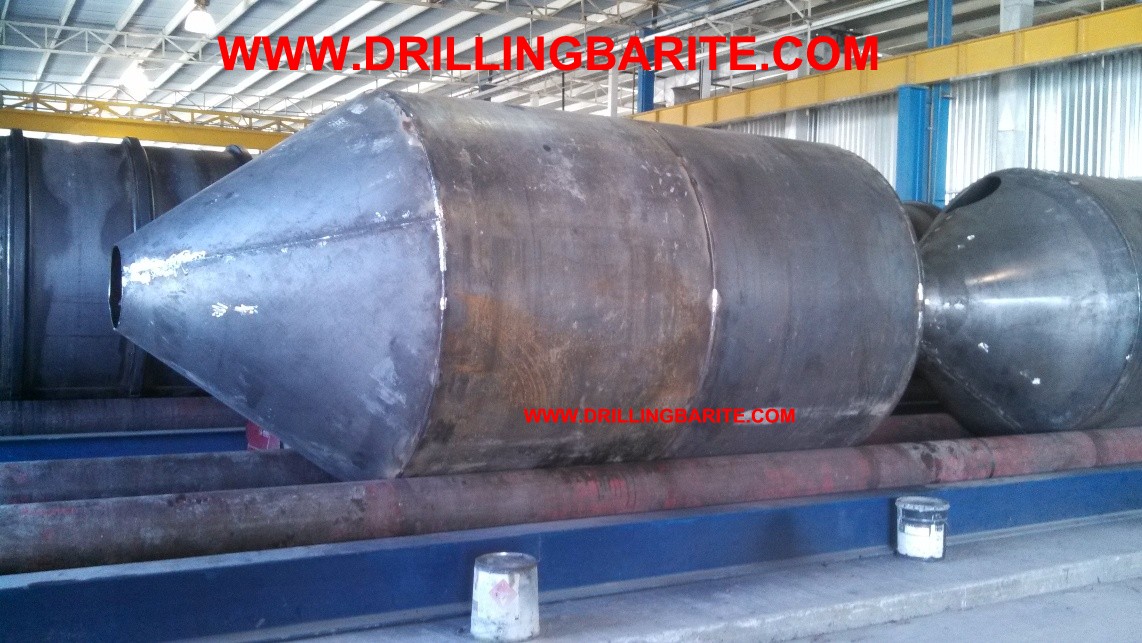

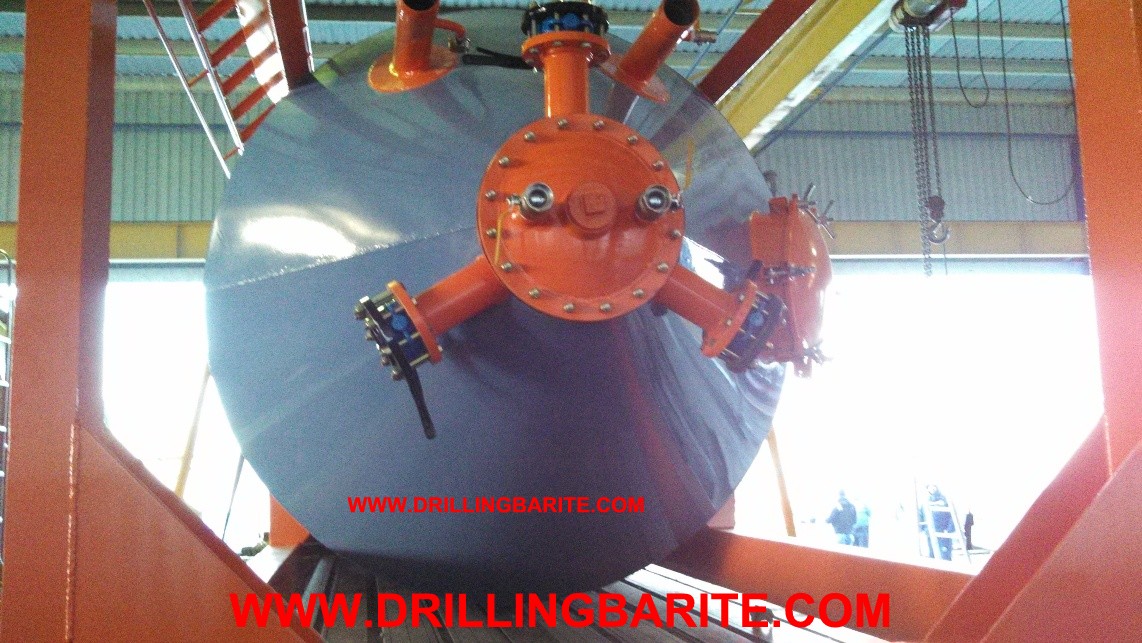

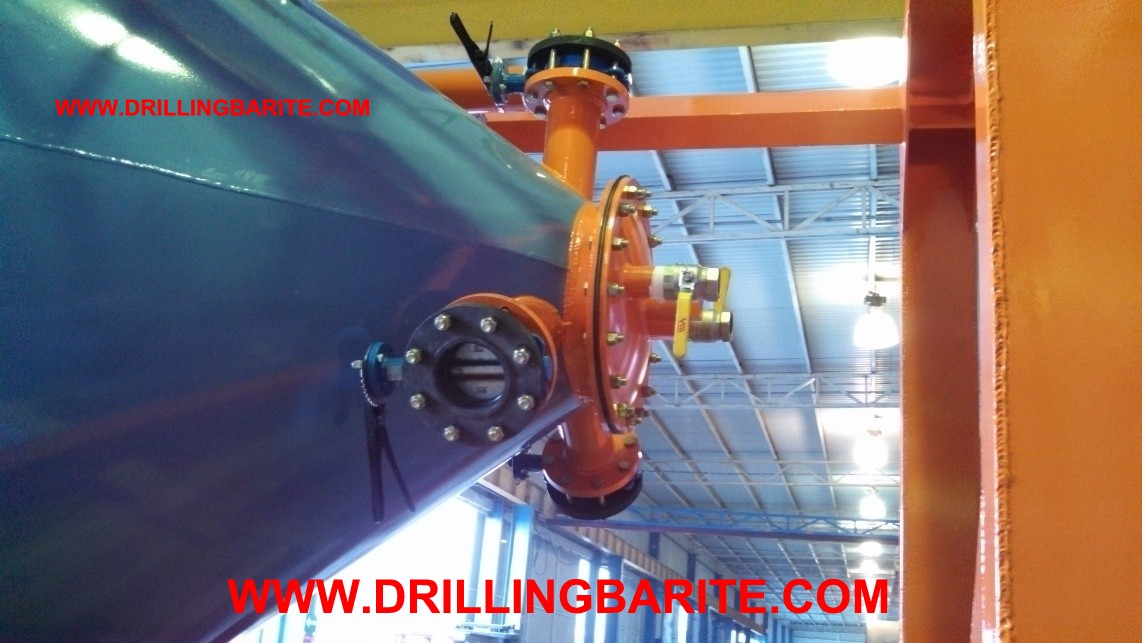

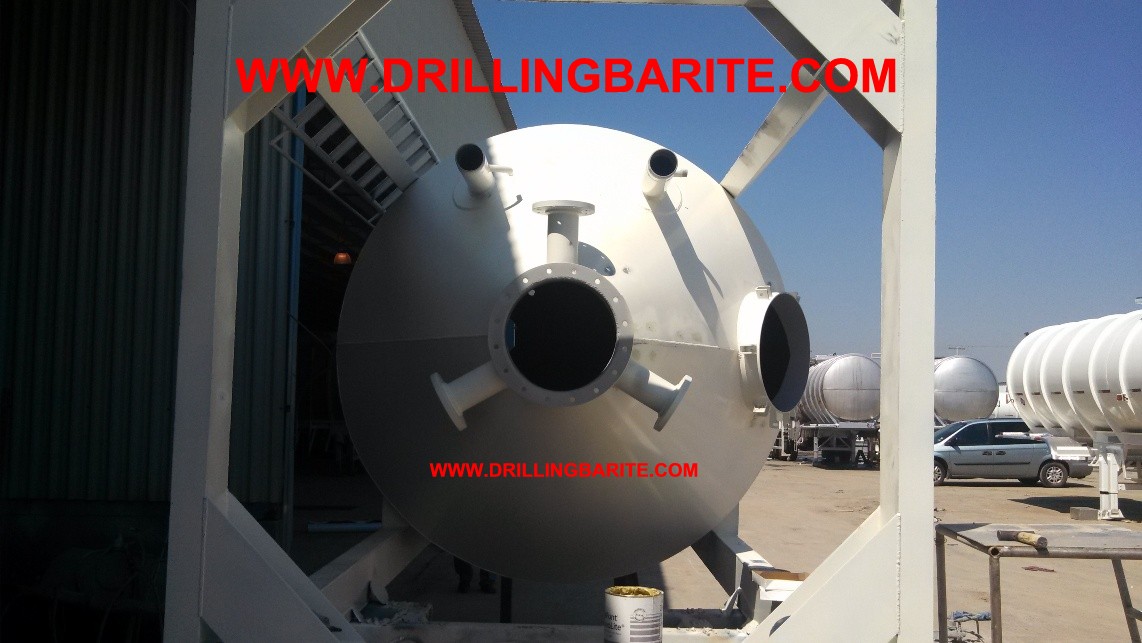

   Hopper                    1/4" AH-50 rolled cone 50° with 4 outlets.
   Structure                 Frame and platform constructed of 8"x 4" HHS Grade B.
   Ladder                     Constructed piping Ø1" Sch. 40, steps in skid plate with life line.

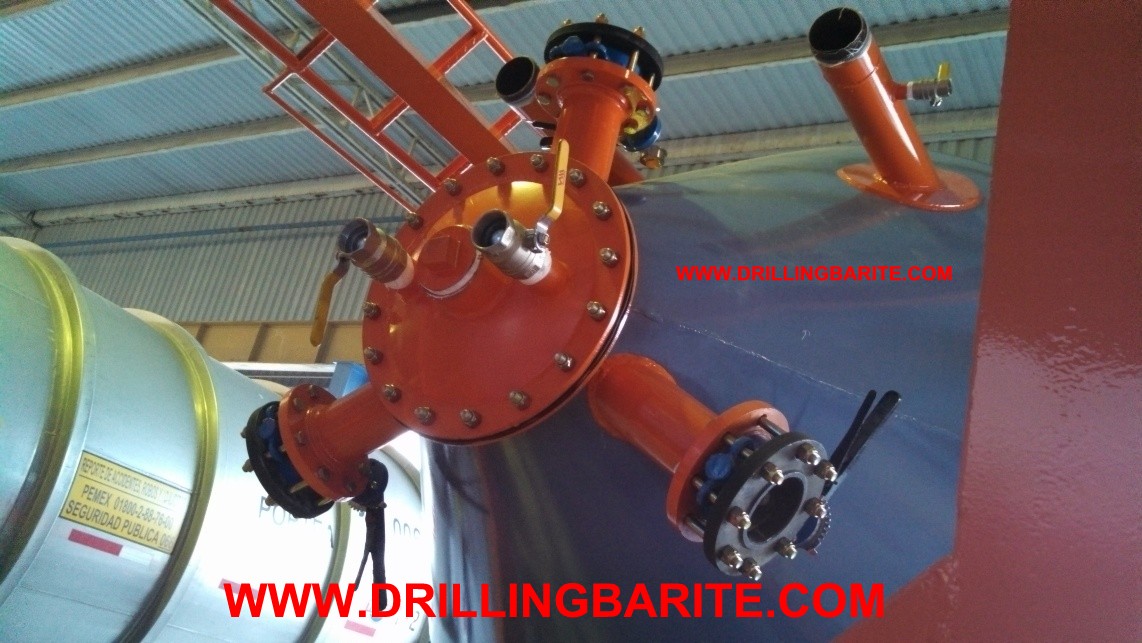

   Connectors:
                                                4 – 4" discharge outlets
                                                2 – 4" Inlet and supply piping Sch. 40 NPT

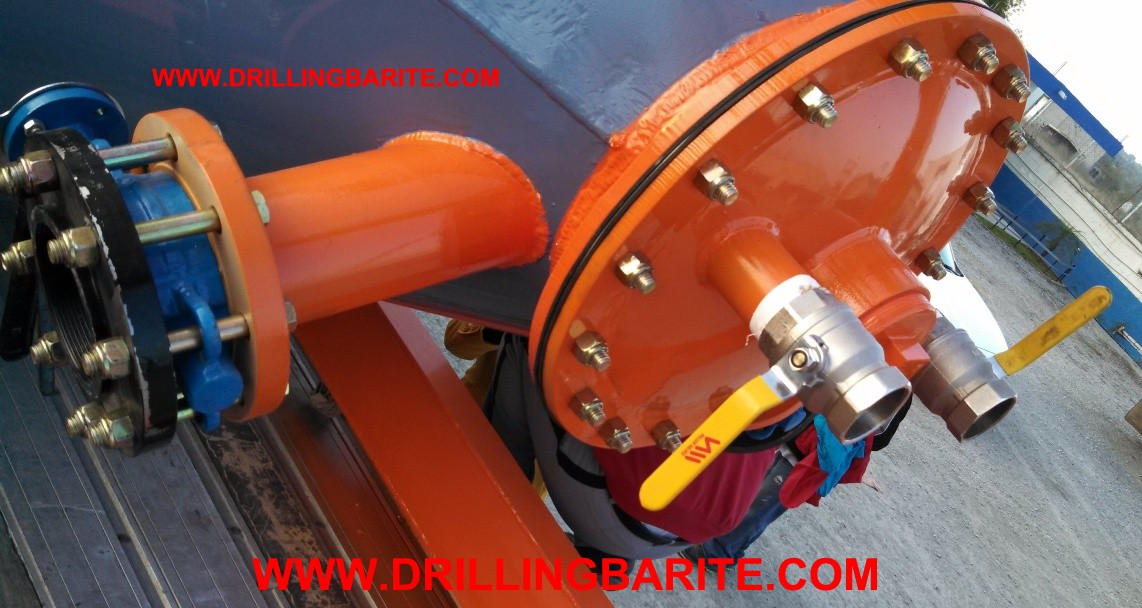

                                                4 – 4" butterfly valves
                                                2 – 1" ball valves

   Relief valve              Pressure relief valve (15 psi max. working pressure)
   Accesories:
                                    20" Manway
                                    12" Inspection port with com lock cap.
                                    Lifting eyes for horizontal and vertical lifting.
                                    100 psi oil filled gauge.

   Paint                         Outside: Sand blast , epoxy primer and one color polyurethane paint.
                                     Inside: Epoxi Primer
                                     Custom paint at extra charge.
                                     Your logo at extra charge.
   Vibrator                    20" fluidizer.
   Capacity                    530 cu ft.
