SPECIFICATIONS

Basic Unit

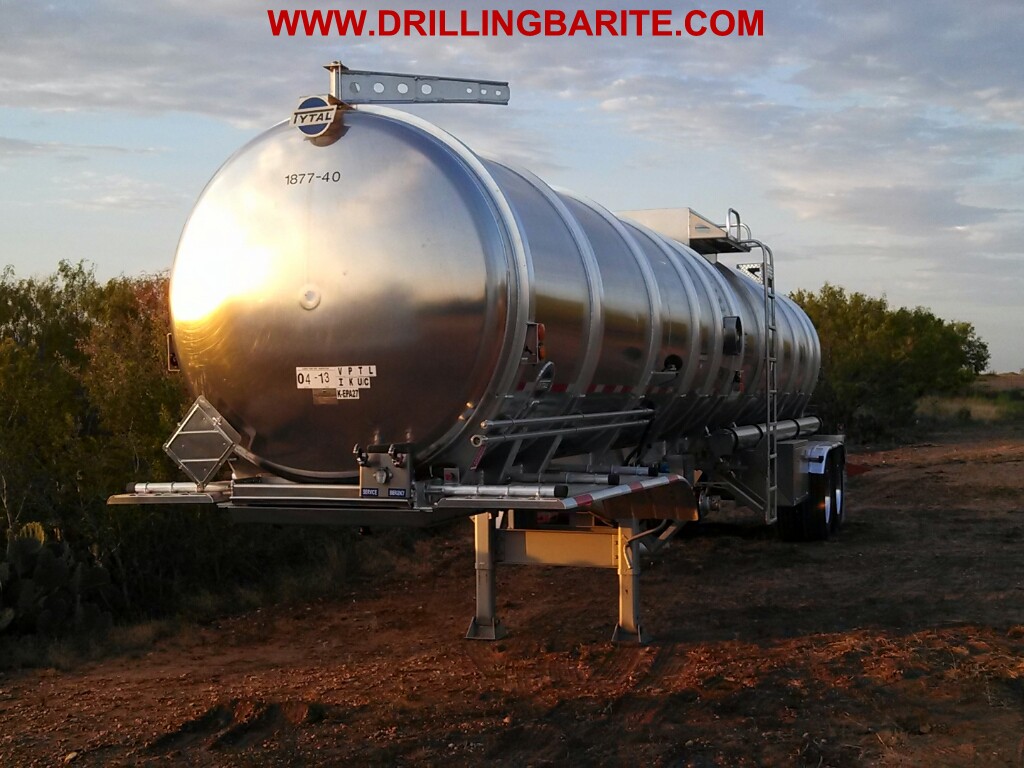

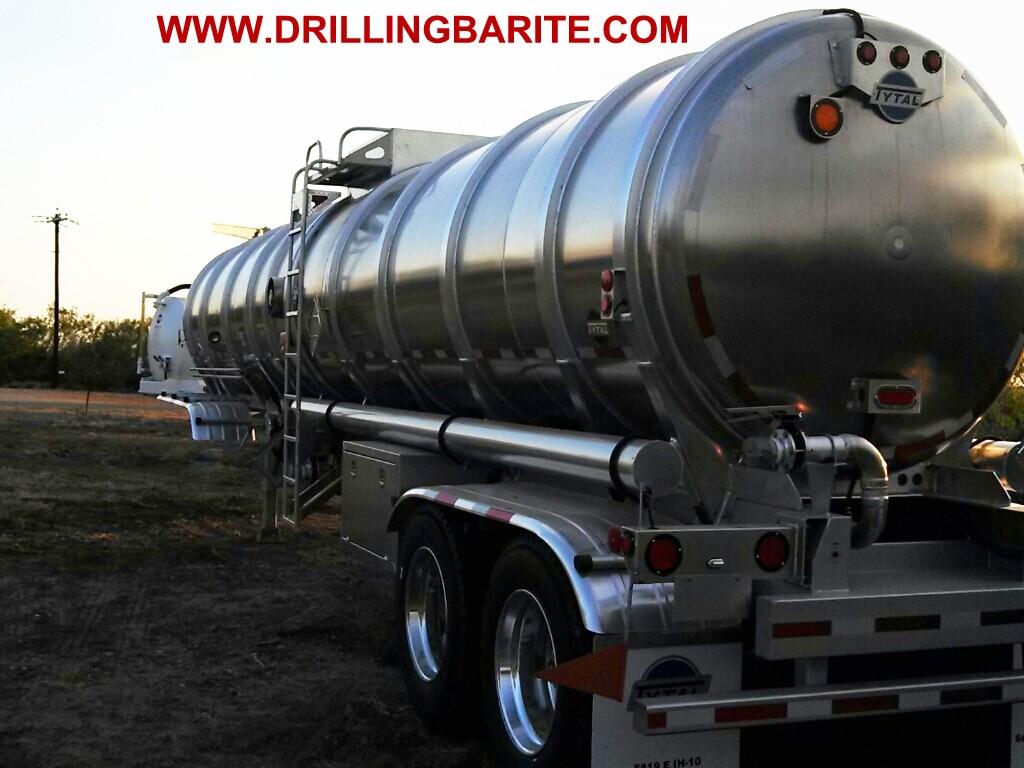

Cylindrical tank manufactured with high resistance quality aluminum 5454-H32 with 1/4" body thickness. For crude oil transportation

Capacity

8,400 Gal. + 1% (200 BBL)

Rings

Rings on the cylinder body are manufactured in aluminum channel of 4'' 6061-T6

Sub-Frame

Structural aluminum 6061 T-6 as longmembers

Suspension

Intraax 30/25 of Hendrickson or Meritor two axle width of 71 1/2" track, automatic slack adjusters & 30-30 spring break chambers.

Dimensions

42'-11" length x 96" wide

Chassis

Manufactured in high resistance 1/4" carbon steel plate.

Paint

Epoxy coating on tank interior of 10 to 12 mils thick.

Kingpin Plate

HS Steel grade 50 in 3/8" with Holland King Pin, 2" Adjustments.

Ladder

Ladder manufactured in high resistance aluminum on the road side.

Fenders

Four aluminum fenders, two in front and two in back.

Landing Gear

One brand Jost installed on 3/8" structure aluminum base (2) speeds.

Baffles

Four dome baffles manufactured in 1/4" aluminum with man holes.

Manhole

One 20" manhole installed on tank center brand Knappco, with 6 quick opening adjustable clam levers, rectangle spill box included, with one vent valve, one Girard pressure/vaccum valve installed according with DOT code 407.

Discharge

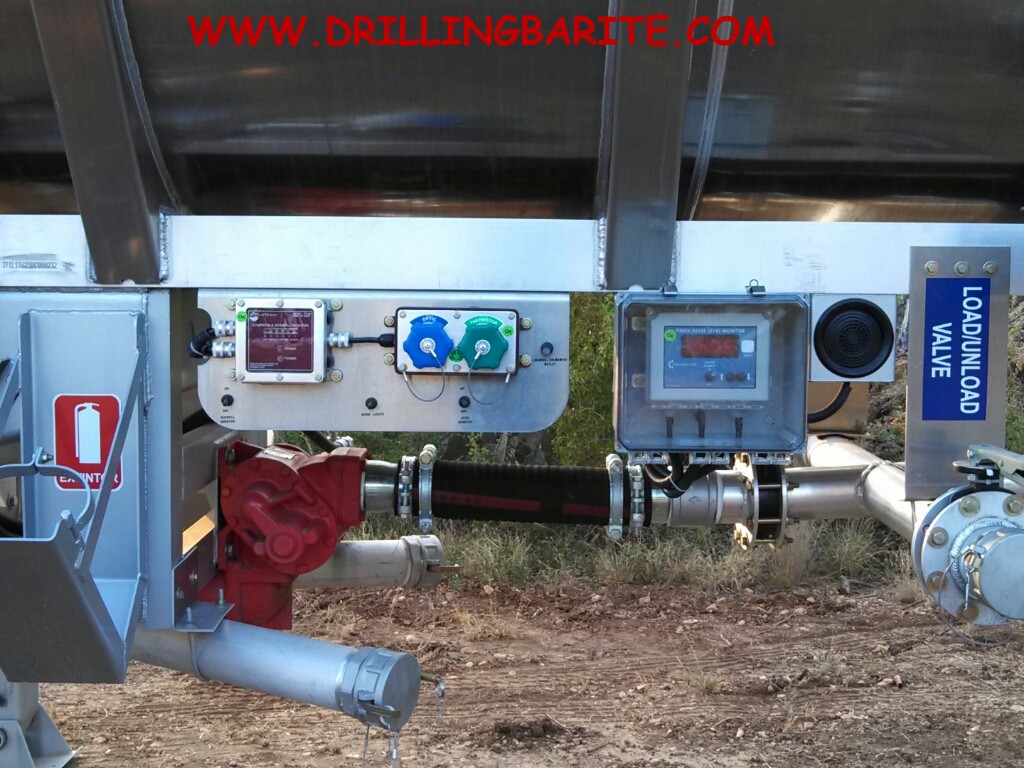

Discharge system vapor recovery valves with 3" tubing and connections. 6" x 4" security valve with 4" tubing and three 4" valves with lateral discharges and pump preparation between landing gears.

Fire Extinguisher

Two fire extinguisher holders installed on each side of tank.

ABS

Antilock brake system brand Meritor-Wabco Model 4s/2m

Compartments

Single

Bumper

Shock resistance bumper constructed of structural aluminum tubing.

Tire Carrier

One

Electrical System

With sealed harness with LED lights.

Accessories:

Conspicuity tape 2" wide retro-reflective tap according with US NHTSA rules.

Box protector 14'' x 12'' x 6'' for level gauge Titan (Titan gauge not included)

24" x 24" x 36" Tool Box

(6) Cleanout hose four 3" hose on top of tank and two 3" on either side of tank.

(2) Hose tray in aluminum, 20' wide one each side.

Four placard holders.

Walkway around spill dam 12" wide aluminum diamond type on roadside of spill dam

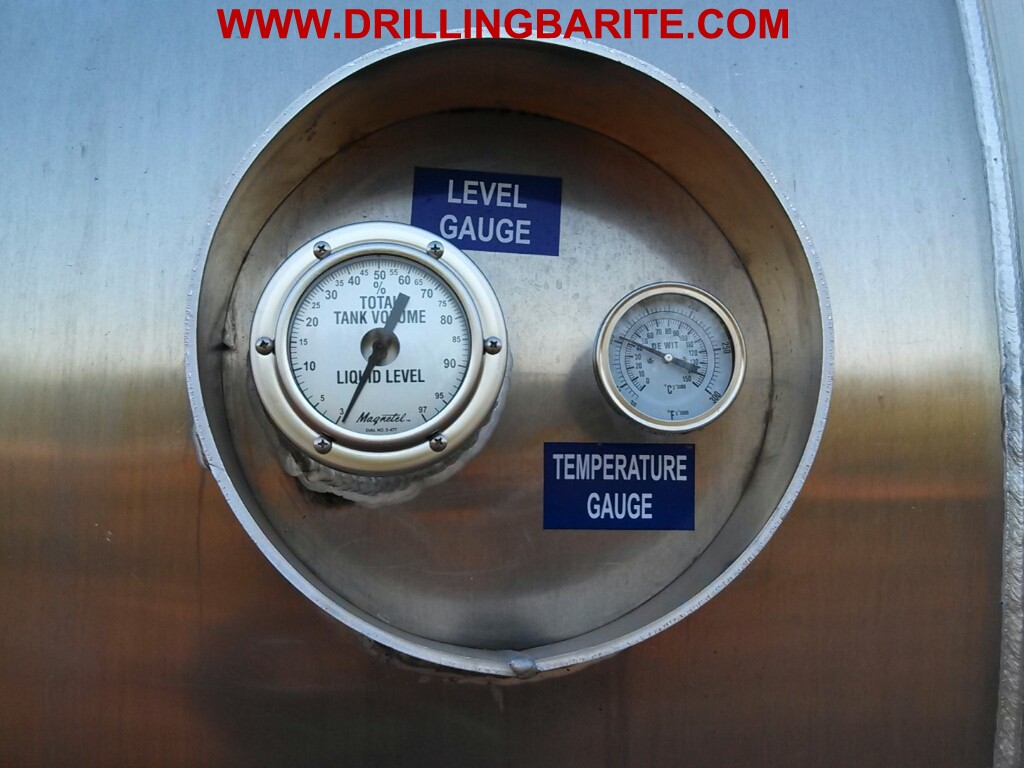

Mechanical level gauge and thermometer

Mud Flaps

(2) with TYTAL scripted on them.

Rims

(8) Aluminum rims 7,300 lbs. 24.5 unimont.

Tires

(8) Tires 11R 24.5 16 ply

Note

Whatever is not included in above description would be quoted separately.

Note

This unit is manufactured according to the DOT 407 code.

Testing

Certified Hermetic, hydrostatic and pneumatic testing information provided with each tank. Int. MWPA 25 PSI, Test pressure 40 PSI, Loading temp 125 °F Max.

ADDITIONAL OPTIONS AT EXTRA CHARGE

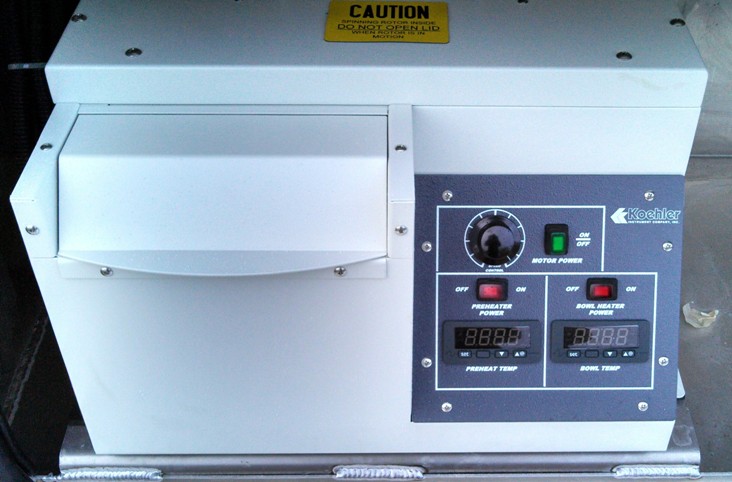

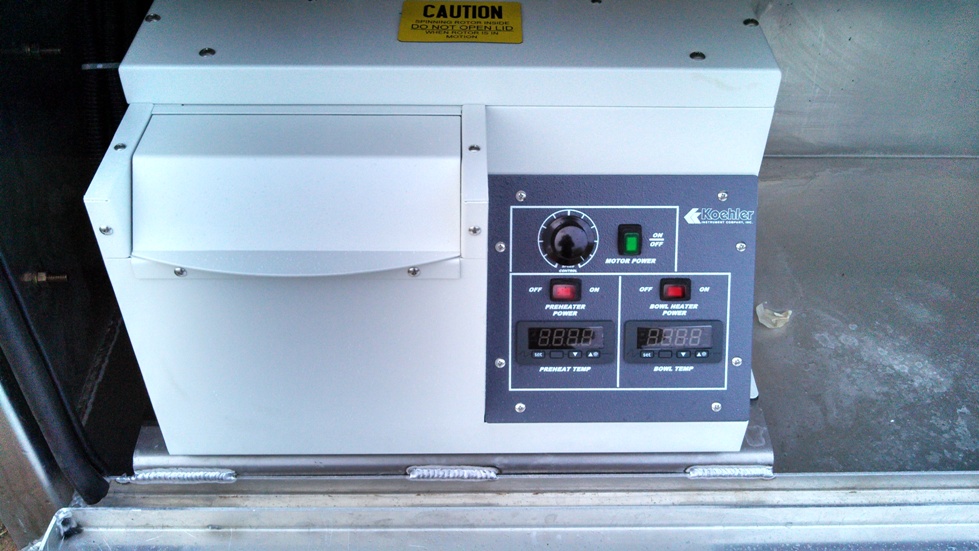

Accessories Centrifuge  KOEHLER K60094
Portable Heated Oil Test Centrifuge, 12V DC 40A

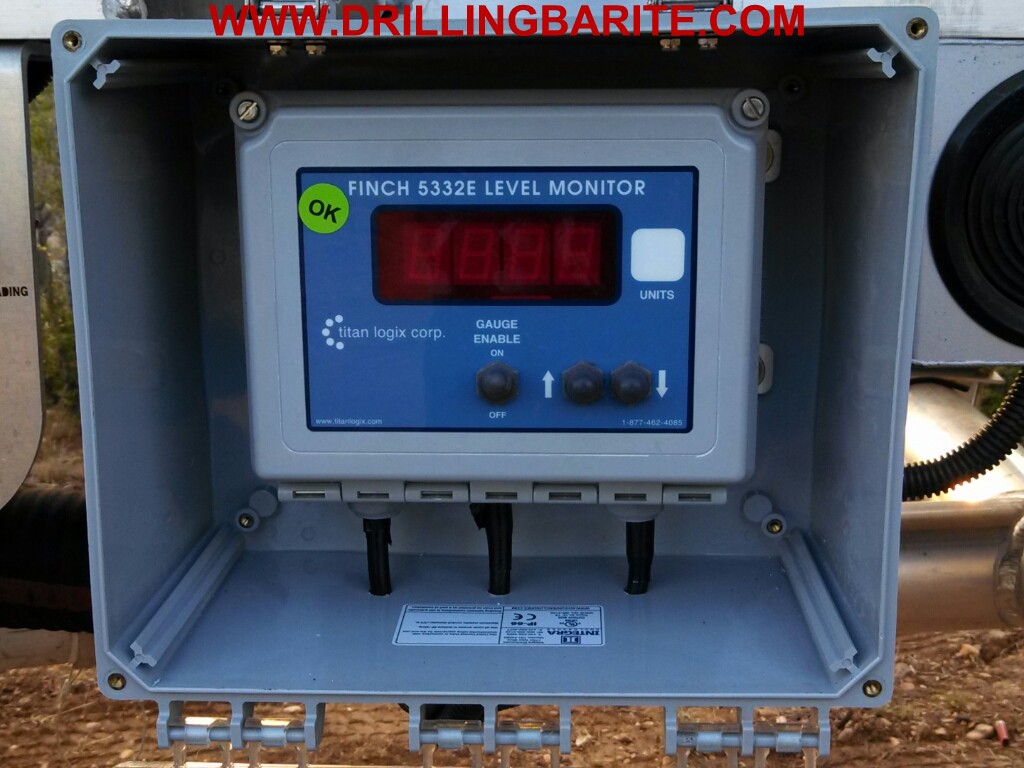

Accessories Titan TD-80 Level Indicator with relay or equivalent

Accessories Pump package including 4'' Roper 3748 MBHF with hydraulic motor.
