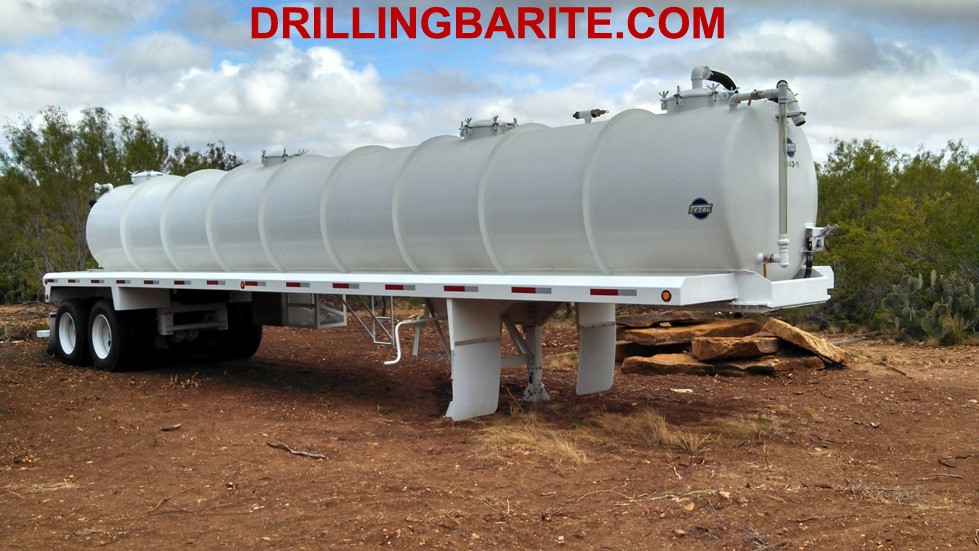

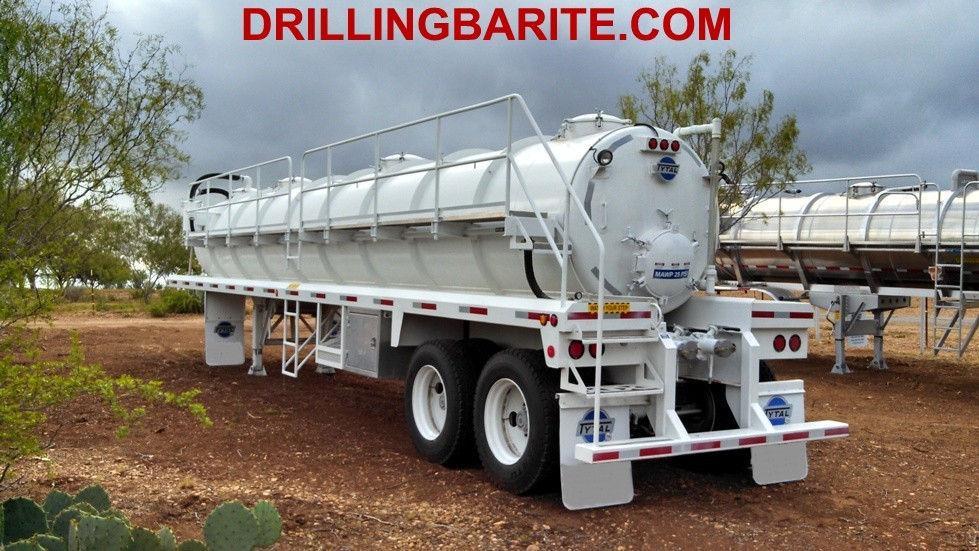

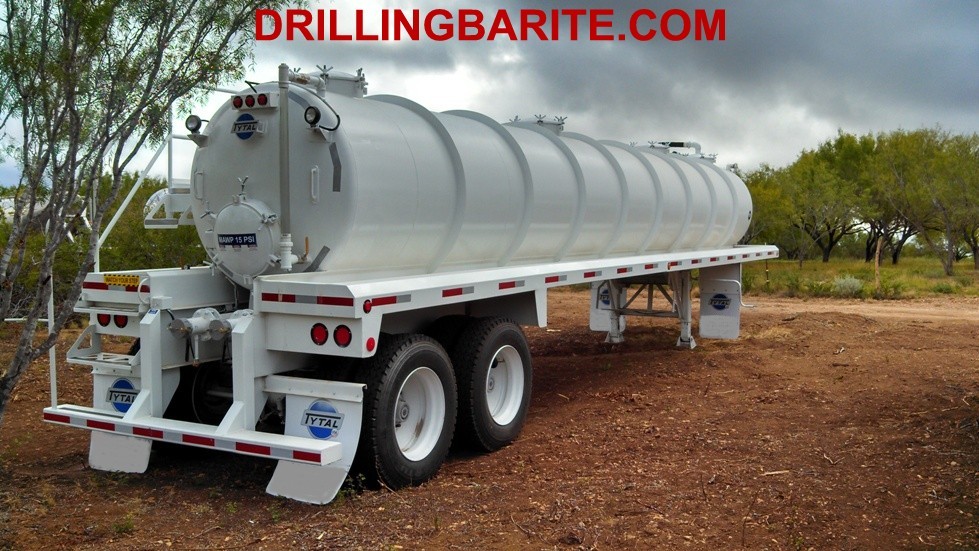

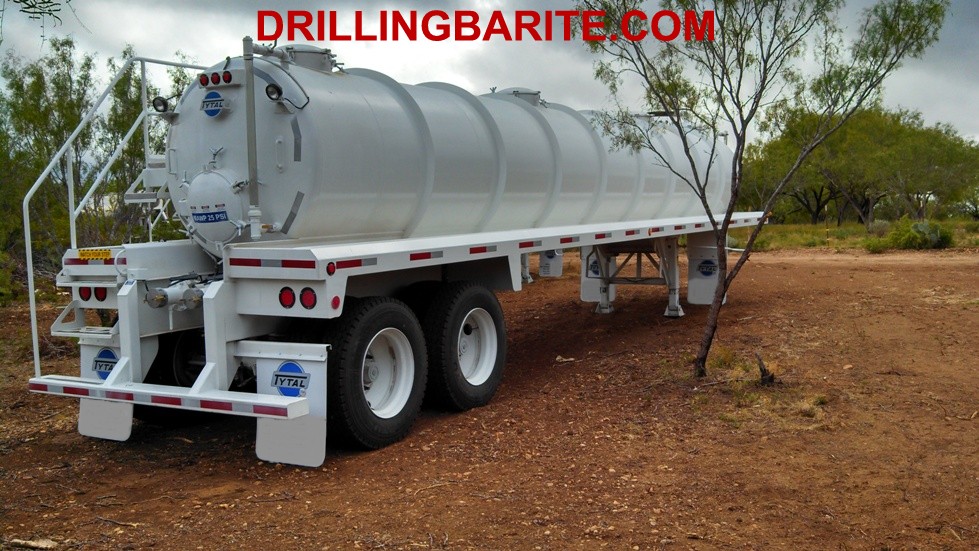

130 bbl. Carbon Steel Vacuum Tank Trailer

Carbon Steel Vacuum Tank Trailer is cheaper than aluminum vacuum tanks.

Carbon Steel Vacuum Tank Trailer can be manufactured at your specs.

Let us provide you with the finest Vacuum Tank Trailer available!

 CARBON STEEL 130 BBL VACUUM TANK TRAILER

SPECIFICATIONS

Basic Unit

Cylindrical vacuum tank trailer non code manufactured in carbon steel A-36 with 1/4'' body thickness, 1/4'' bulkhead and (8) external rolled rings, . For unspecified Oilfield fluids.

Capacity

5,460 Gal + 1% Expansion (130 BBL)

Sub-Frame

A-36, 1/4''

Suspension

2 Intraax 30/25 of Hendrickson or Meritor, with automatic slack adjusters & 30-25 spring break chambers, with straps

Dimensions

Length 42 ft, Height 10.58 ft, Width 8.20 ft

Chassis

Manufactured in high resistance 1/4" carbon steel plate.

Paint

Exterior coated high build epoxy primer and color coated whit high solid polyurethane. And interior painting whit a 6 mil film.

Brakes

FMVSS-121 Certified

Ladder

Installed at the back left side of the tanker, and another at the middle left side of the tanker, fabricated in steel with aluminum anti-slip steps.

Fenders

Full length formed hose pan (10 Ga)

Landing Gear

One pair of Jost

Baffles

Three (3) 1/4'' Baffles, Mud Type

Manhole

Five (5) manholes. All 20" domed style with plated swing bolts and wing nuts.

Three (3) Located on top of the tanker, One (1) located at the bottom part of the rear bulkhead, One (1) Located at the top front used as a Shut off.

Ball type primary located inside of the front manhole.

Discharge

Two (2) - 4" Butterfly valves at rear connected to a wedge sump.

Venting

2" piping that goes to from the front shoot off to the rear end of the trailer

ABS

Antilock brake system brand Meritor-Wabco Model 2s/1m

Venting

One (1) 1/2" Vacuum relief at 10 PSIG

VOne (1) 2" Pressure relief at 15 PSIG, Both located at the front top of the tank.

One (1) 2" Blow down line at rear

Compartments

Single

Bumper

Rear bumper 4" x 8"

Tire Carrier

One

Electrical System

Full DOT LED lights, sealed lights harness and junction box whit terminal strip, Two (2) rear work lights with integral switches.

Mud Flaps

(2) with TYTAL scripted on them.

Accessories

Ball type secondary 12 Gal on drivers side front with drains

Two (2) 1/2" Ball valves installed at the bottom of the outlet tubes.

One 2" Vacuum pressure gauge, liquid filled

Driver side whit aluminum anti-slip walkway and hardened hand rails

1" inner steel drain tube

Tool Box

Fabricated in Aluminum 26" x 20" x 36" on drivers side with sealed door

Rims

(8) Steel rims of 8,000 lbs. 24.5

Tires

(8) Tires 11R 24.5 16 ply

Testing

Certified Hermetic, hydrostatic and pneumatic testing information provided with each tank. Int. MWPA 25 PSI, Test pressure 40 PSI, Loading temp 125 °F Max.
