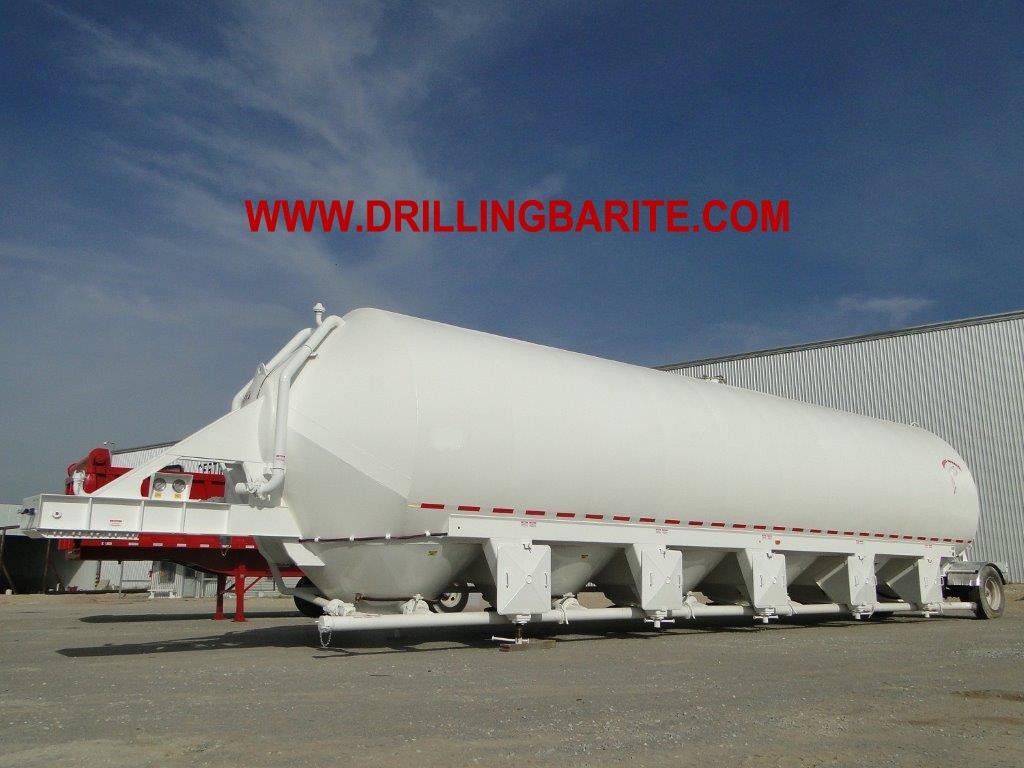

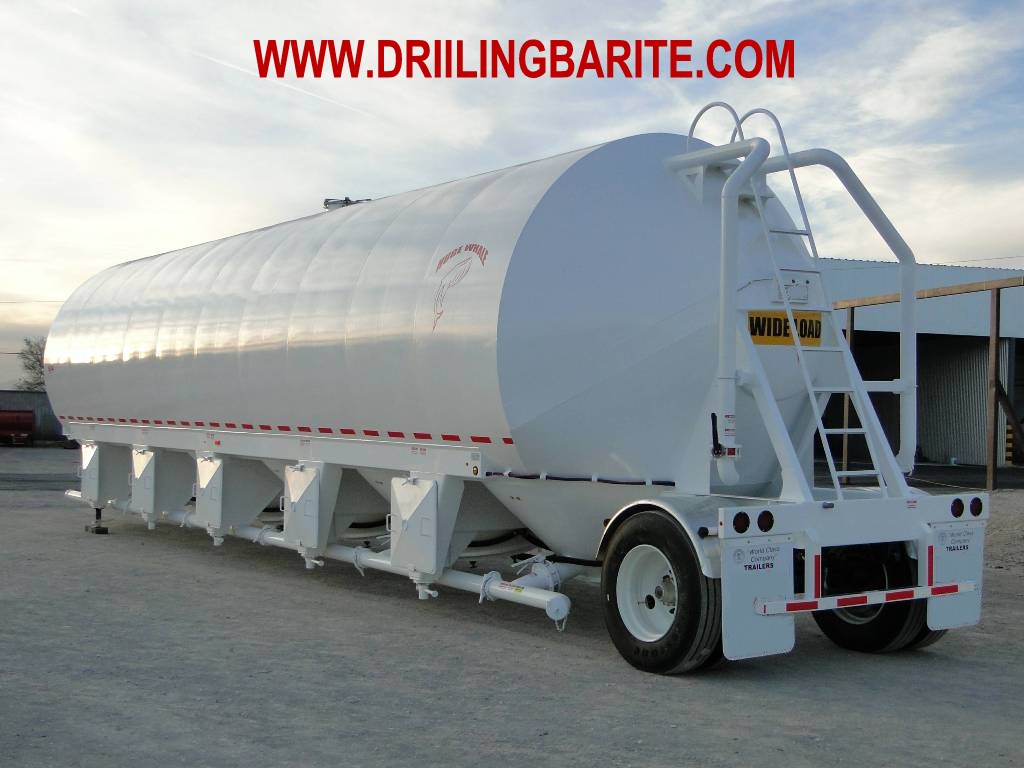

400 TONS BARITE PIG TANK
STORAGE SILO PIG 116 M3 / 4100 cu. ft.

CAPACITY:
                     4100 Cu. Ft. / 116 M3

BODY:
                     STEEL 1/4. HIGH RESISTANCE  WELDED WITH AUTOMATIC MACHINES,
                     WITH INTERIOR REINFORCEMENTS.

CHASIS:
                     IN REINFORCED STEEL  1/4 HIGH RESISTANCE

KING PIN SUPPORT:
                     HIGH RESISTANCE 3/8 STEEL

SUPPORT LEGS:
                     5 PAIRS  SCREW TYPE 4 INCH

SUSPENSION:
                     HUTCH 9700 HS
AXLE:
                     (1) 30,000 lbs  77.7" TRACK

KING PIN:
                     (1) KING PIN HOLLAND 3/8

BRAKES:
                     AIR BRAKES WITH DOUBLE BOOSTER

WORK PRESSURE:
                    15 PSI

TEST PRESSURE:
                    30 PSI

IN LINE:
                    3´´ DE DIAMETER WITH ALUMINUM QUICK COUPLING,  CHECK VALVE 3´´,
                    AUXILIARY CONNECTION 3´´ AND BUTTERFLY CONTROL VALVE 3"

GAUGES:
                    2 GAUGES FOR AIR PRESSURE AND TANK PRESSURE

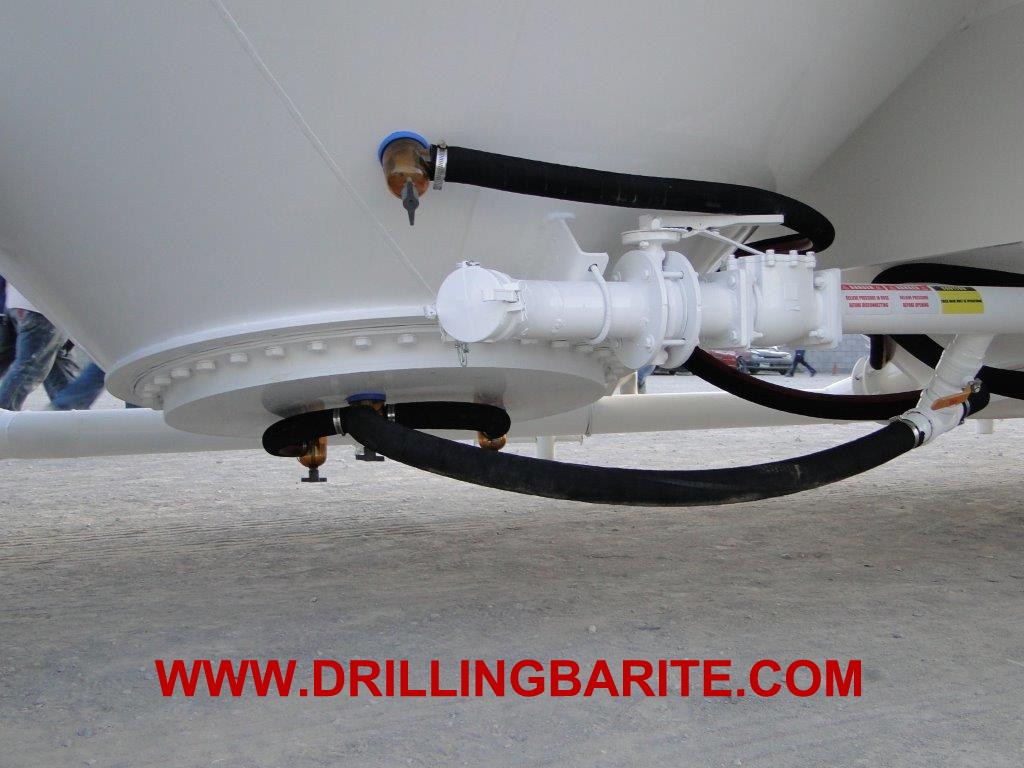

HOPPERS:
                    6  DISCHARGE CONES WITH AERATORS  ´´FLOW CONE´´
                    INCLUDES ALUMINUM DISCHARGE  TEE AND 6 "BUTTERFLY VALVE

PRESSURIZATION:
                    4´´ CONNECTED TO THE BODY

DOMES:
                    TWO  20" KNAPPCO ALUMINUM WITH 6 LOCKS

RELIEF VALVES:
                    TWO RELIEF VALVES , ONE IN THE AIR LINE AND OTHER IN THE
                    FRONT UP IN THE BODY

FENDERS:
                    ON ONE AXLE ALUMINUM

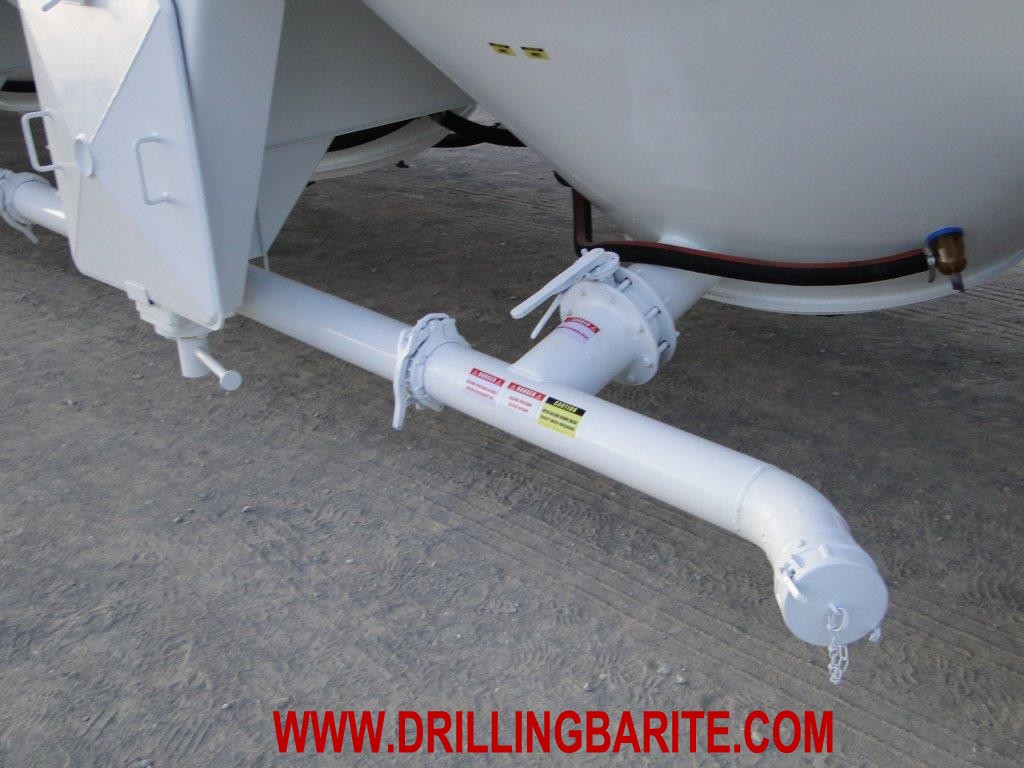

DISCHARGE LINE:
                    5´´ WITH 6 BUTTERFLY VALVES

LIGHTS:
                    DOT APPROVED LED LIGHTS

ANTICORROSIVE:
                    SPECIAL APPLICATION OF THREE LAYERS OF ZINC ANTICORROSIVE

PAINT:
                    TRIPLE APPLICATION POLYURETHANE

LADDER:
                    IN THE MIDDLE AND ON THE BACK OF THE UNIT

CONSPICUITY TAPE:
                    3 M DOT APPROVED

MUD FLAPS:
                    TWO

TIRES:
                    4 TIRES  24. 5 BF GOODRICH

WHEELS:
                    STEEL UNI-MOUNT

Please use the form at the end of this page to contact us, we can custom make it to your specs.

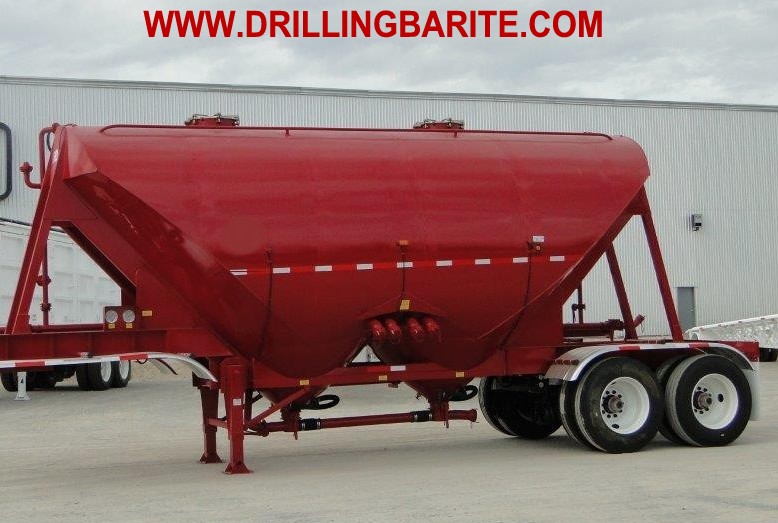

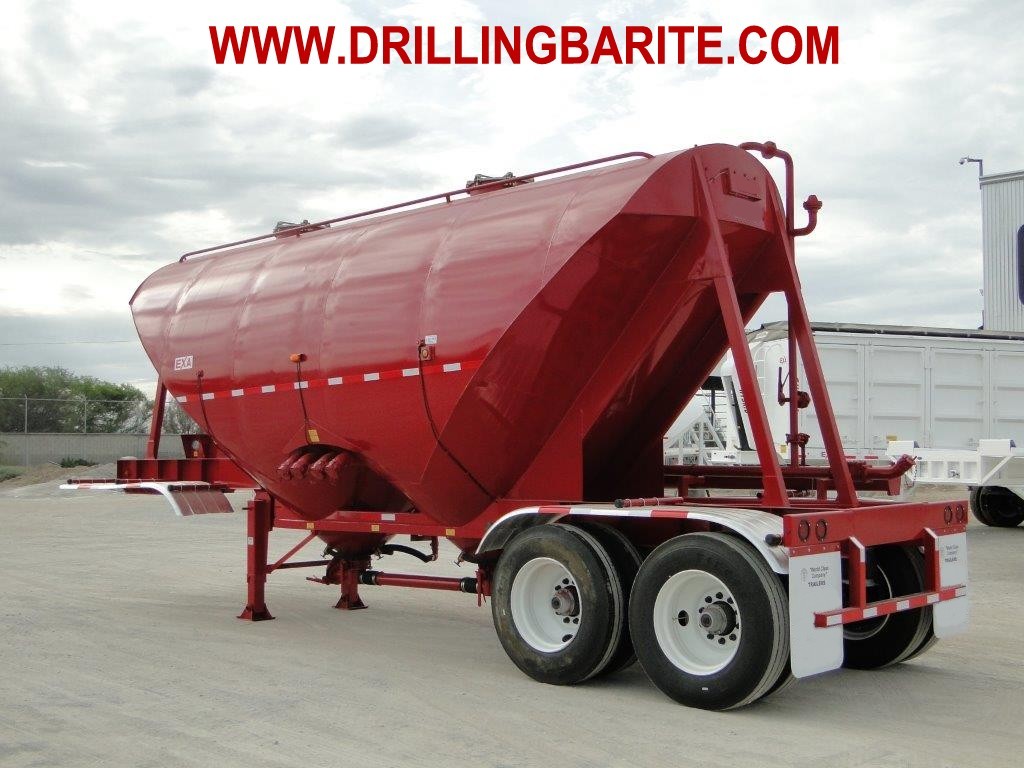

775cuft  two pod steel Pneumatic Dry Bulk Trailer

Capacity:
              Two Pod: 775 Cu. Ft.
              One Pod: 575 Cu. Ft.

Frame: 42" long ¼ steel,

Body:  Steel cal 10  gauge with interior reinforcement.

Domes: 2 (two ) for double pod one (1) for single pod 20” Knappco or betts with steel neck and aluminum cover with 6 ears for airtight closing.

2 discharge cones for 775 cuft /1 one discharge for 575 cuft all with pneumatic vibrating system designed to operate at 15 PSI, alleviation valves 2 in air pipe and frontal cover, air feeding pipeline 3” diameter with fast connection in aluminum, 3” check valve 3” auxiliary connection and 3” control valve.

2 Pressurized pipelines 3” connected to body, 1 discharge  rear 4”  and quick coupler

Steel schedule 80 for sand, aluminum for cement

2 load tubes on the back

2 axles 30k stemco wheel ends

Suspension Hendrickson air HT 300  30k

Brakes with double booster, auto slack adjusters with abs system 4S2M

5^th wheel plate: a-36 3/8.

Pressure   indicator 2 for pipeline pressure and for interior tank pressure.

Rear ladder aluminum.

Landing gear 80,000 lbs

LED Lights DOT approved,  tape DOT approved.grote electrical sealed harness

8 tires 11R x24.5   Firestone FS 507

Wheels steel unimont

Aluminum fenders
