Fract Tanks are used mainly by the oil industry to store liquids. Frac Tanks are made at your specifications. Frac Tanks are easily transported by a fifth wheel and winch truck. Frac Tanks can be manufactured at your exact specifications. Frac Tanks can be arranged as a modular unit. Let us provide you with the best Frac Tank available. |

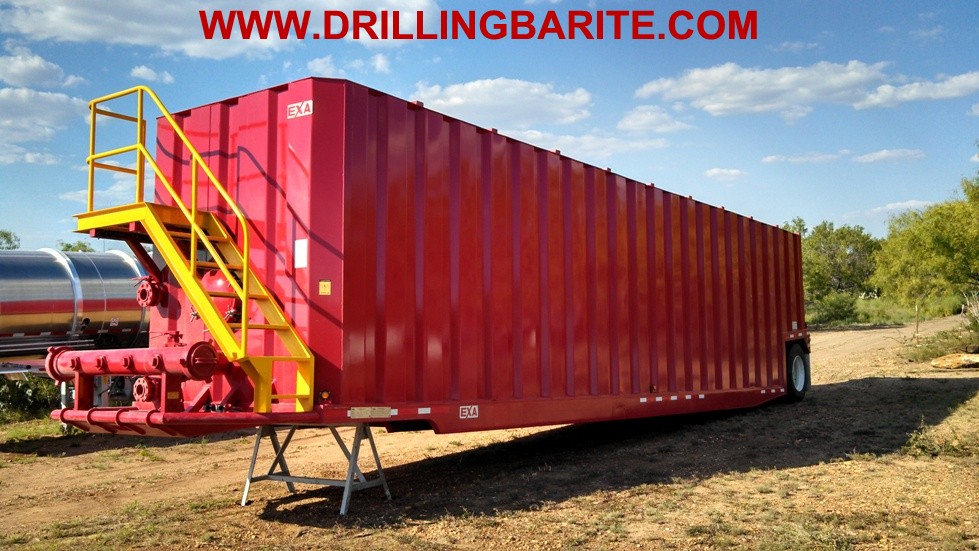

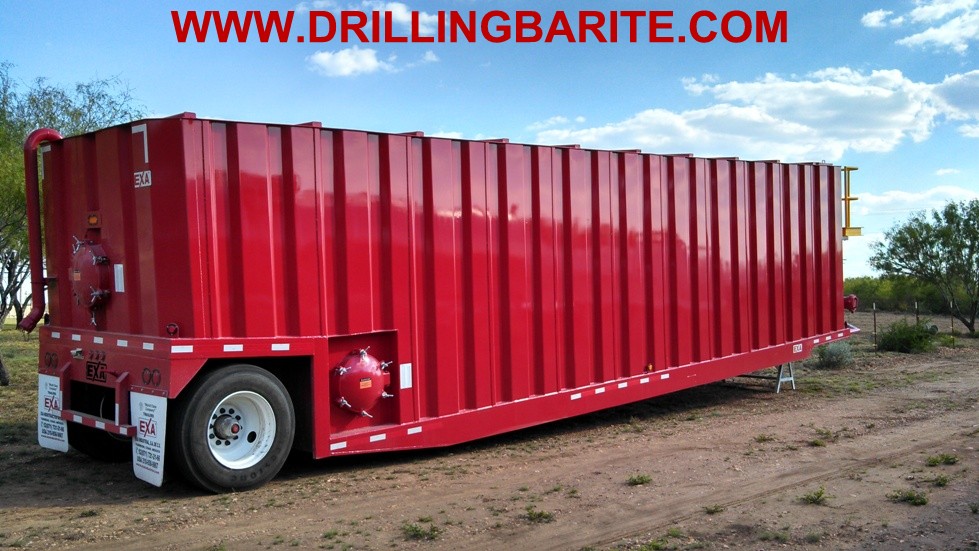

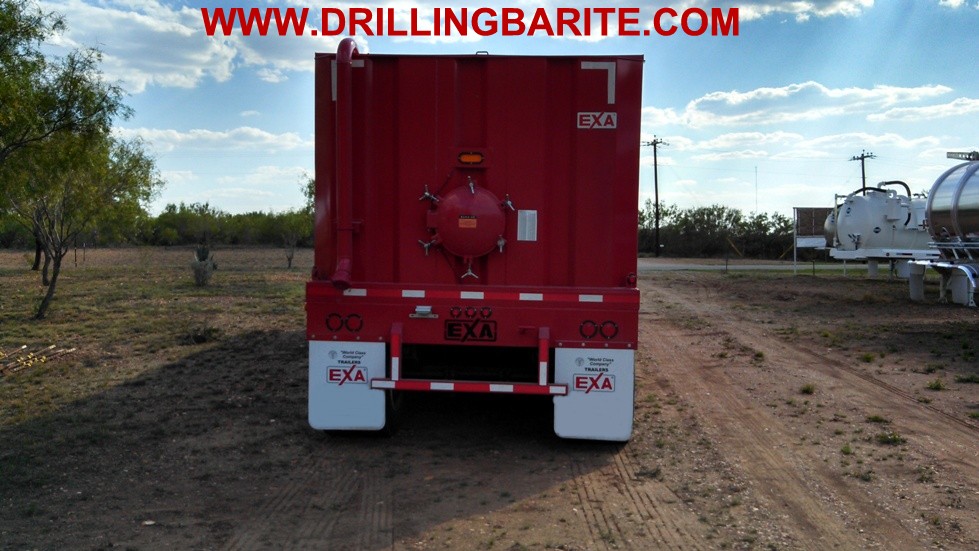

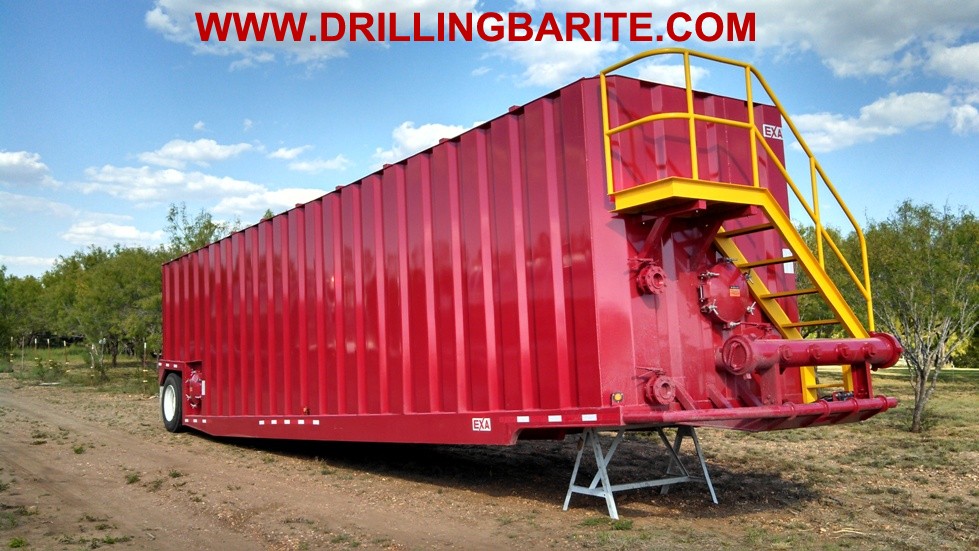

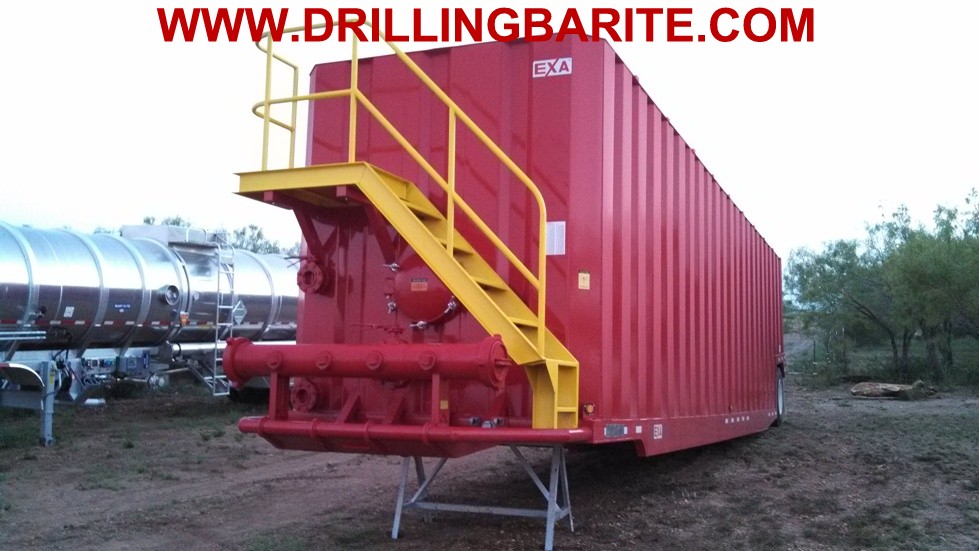

500 BBL FRAC TANK
PRESSURE WASHER TO CLEAN YOUR TANKS, CLICK HERE!
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|

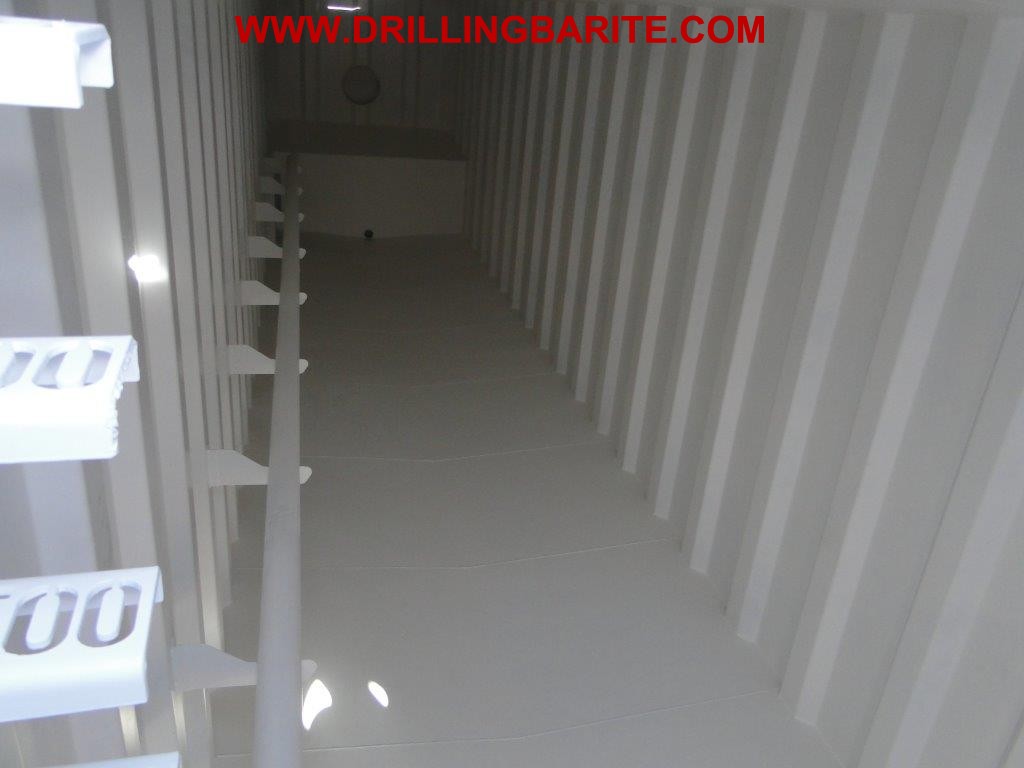

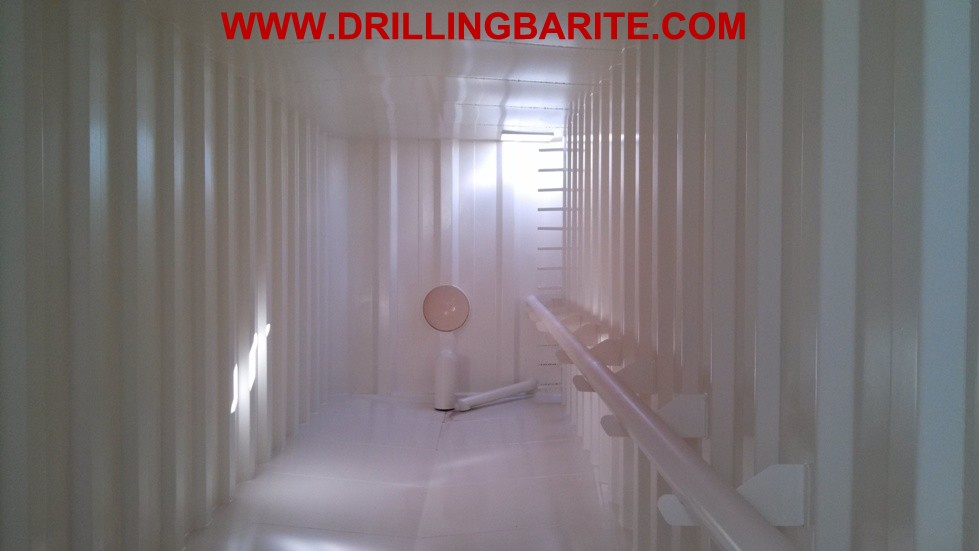

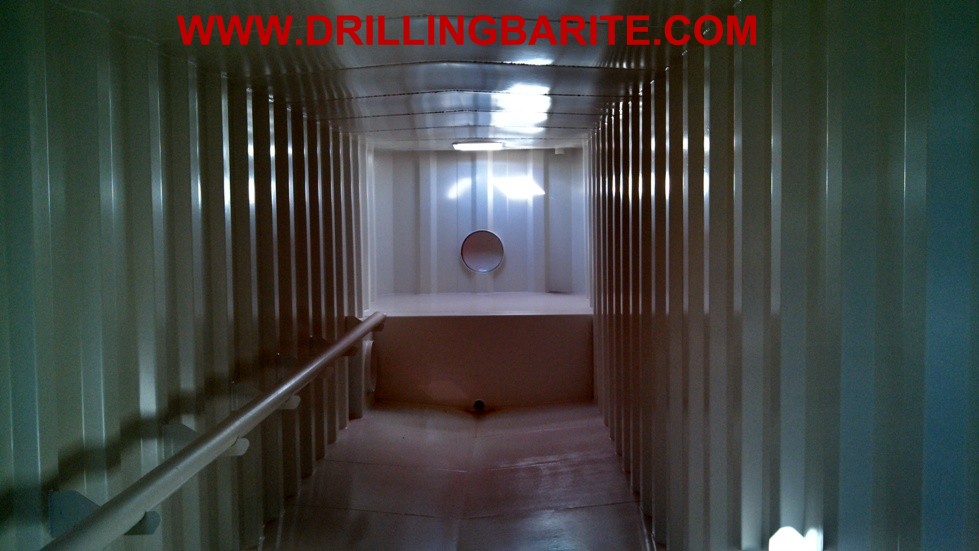

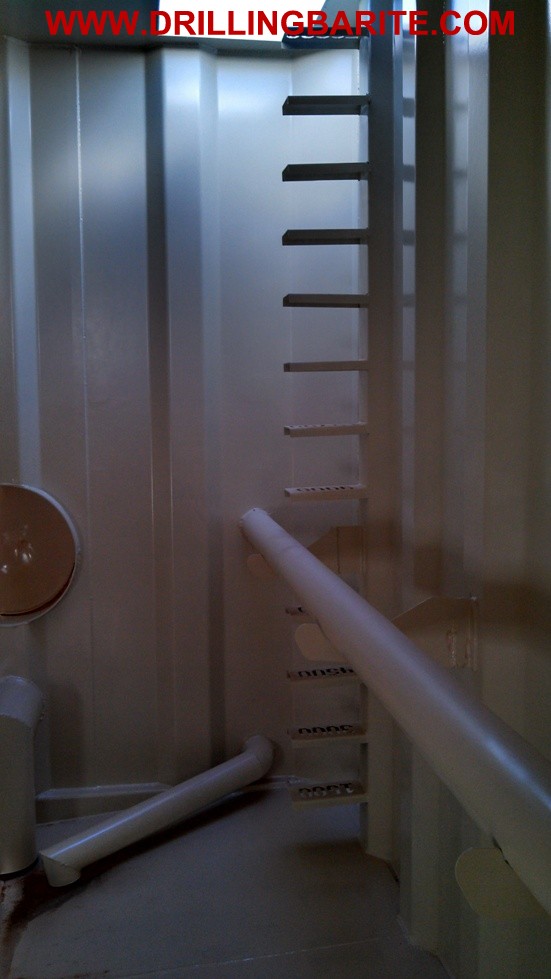

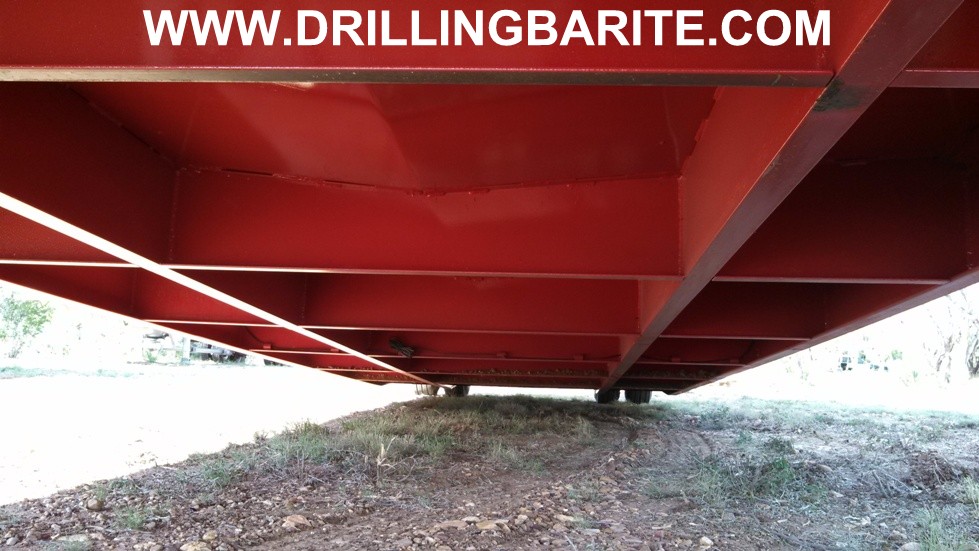

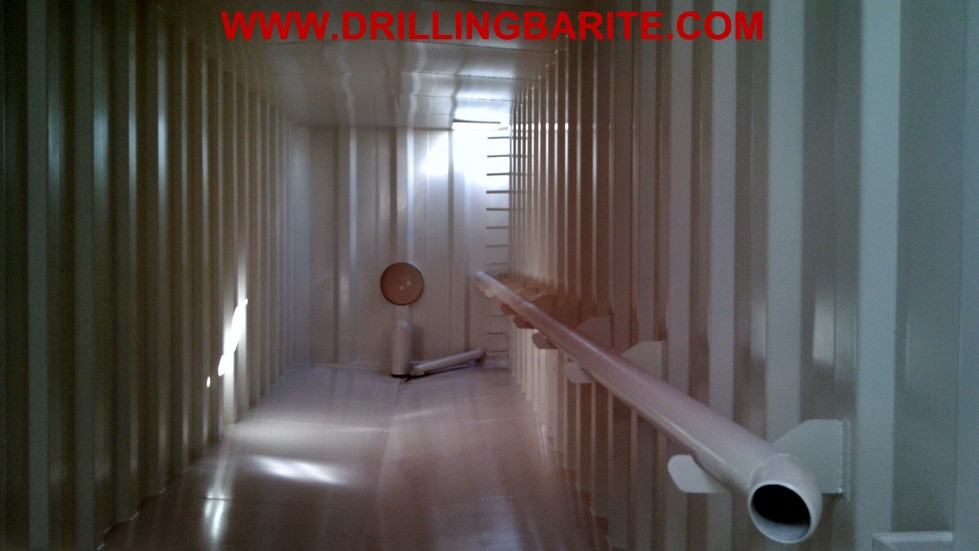

FRAC Tank General Specification Sheet Capacity: 500 barrels, 21,000 U.S. gallons (nominal) Suspension: 30,000 lb. axles with Hutch type suspension and air-brakes 24.5 tires, Firestone fs 507 plus, 10 hole budd wheels powdered coated white Mud flaps Lighting: LED lighting Modular wiring harness with snap connectors Sealed conduit DOT reflective safety tape Mechanical Piping: One (1) 8" Pipe Manifold One (1) 8" butterfly valve, two (2) 8" hammer lock universal hose couplings with caps, four(4) 4" internally threaded hose connections with caps Two(2) 4" flange mount butterfly valve (each) on bottom and middle at the front One (1) 3" Fill Line at back One (1) Drain Line at back with butterfly valve Manways: Three(3) 20" manways sealed with six (6) grease fitting locking lugs (each) One (1) on front one (1) on right side and one (1) on back Roof Hatches Three (3) non-sealed Dimensions: 45'L x 8'6"W x 9'6"H Construction: T-beam frame with V-bottom 1/4" steel floor 1/4" Steel corrugated butt welded walls 3/16" roof 1/4" Steel pitched floor 15 to 20 mils epoxy interior coating |
| If you don't see what you need, please let us know, we can custom make it at your specs. |
If you are looking for one, or one hundred tanks, let us know, please contact us for a quick quote.
