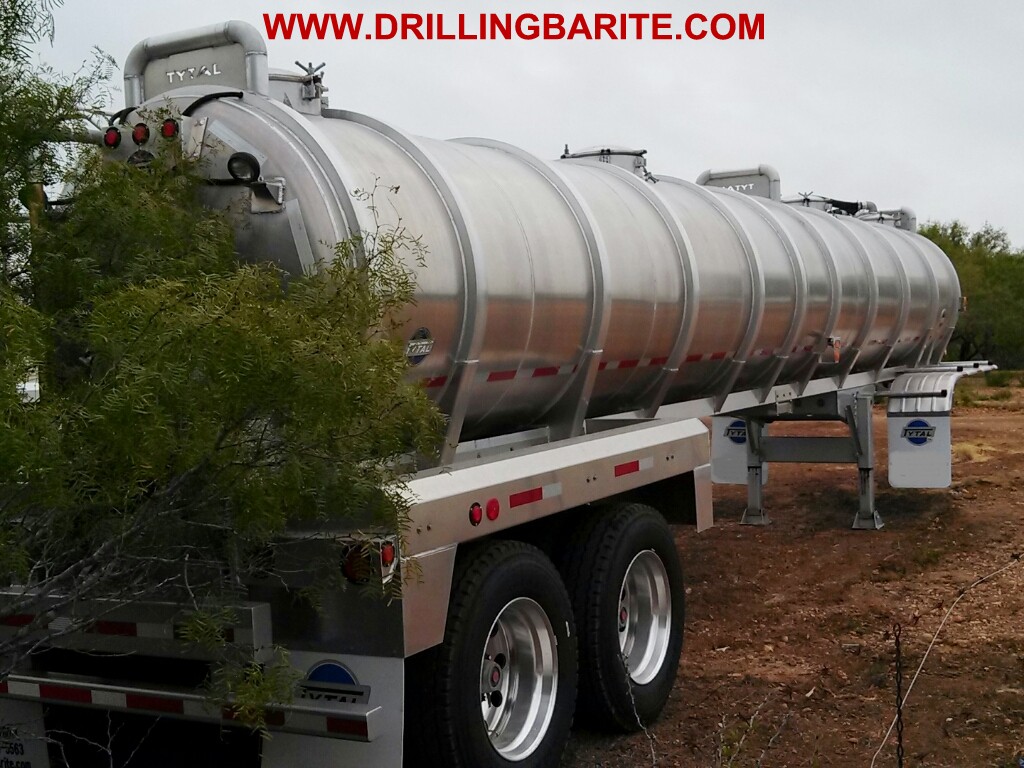

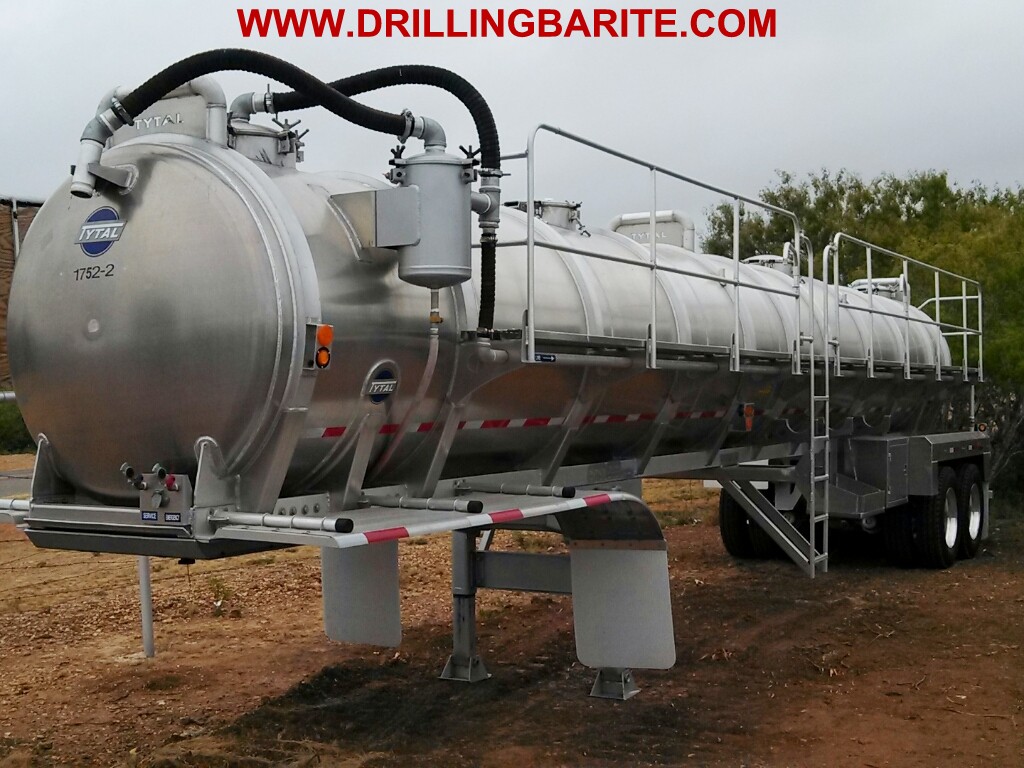

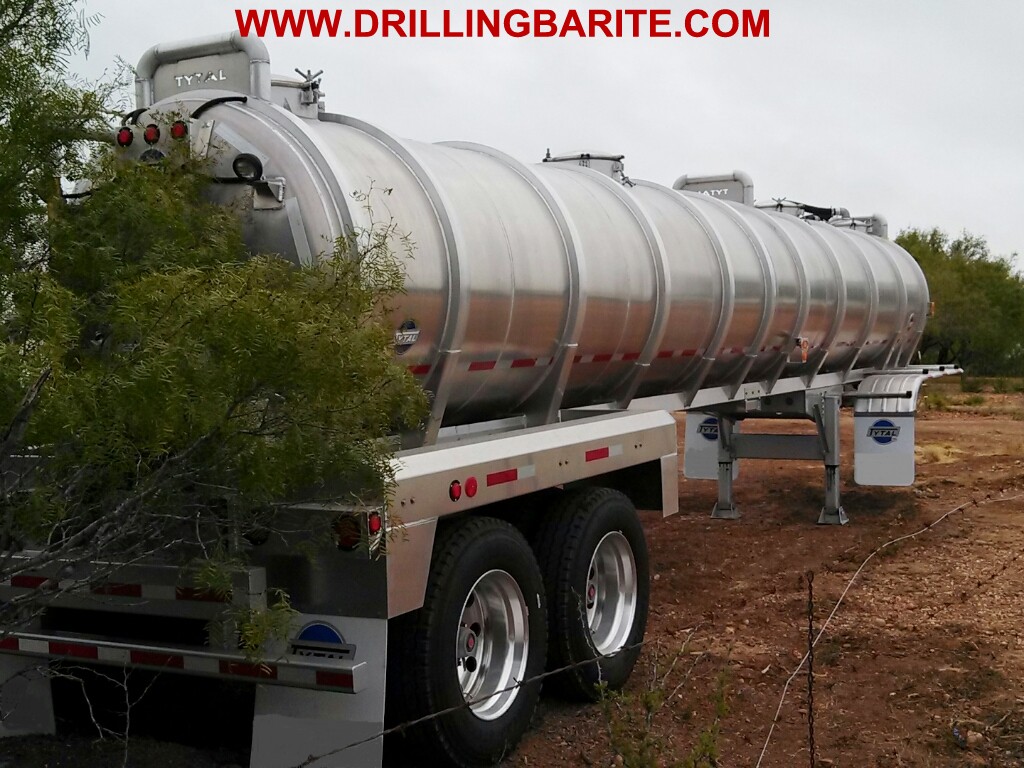

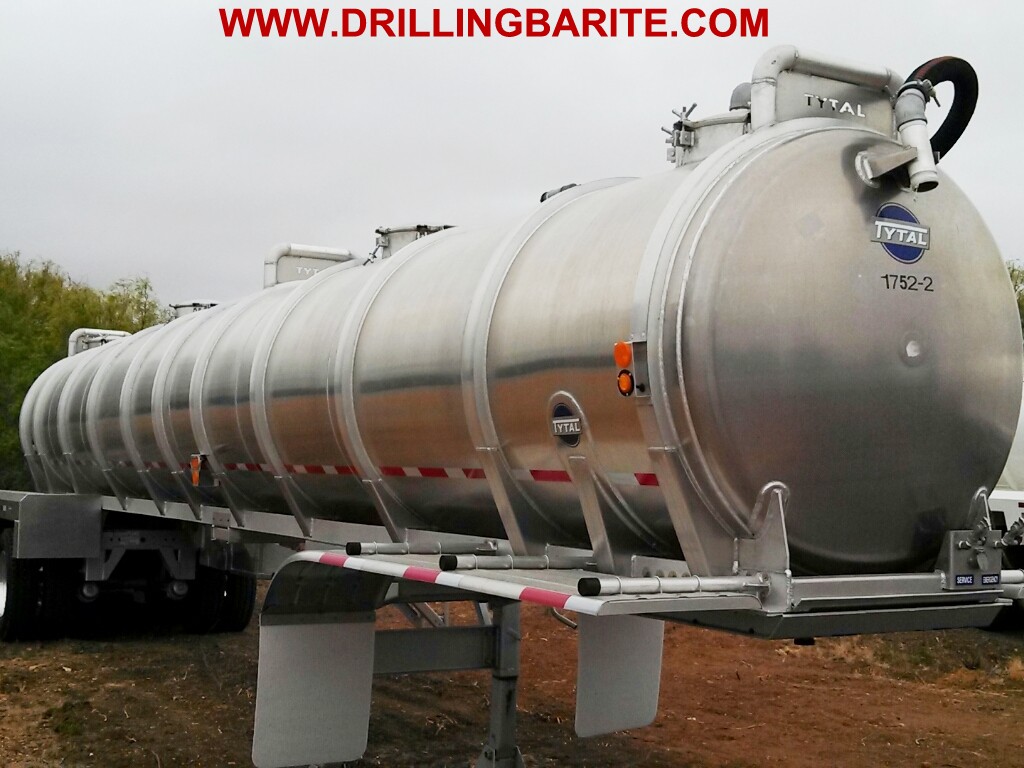

ALUMINUM 150 BBL VACUUM TANK TRAILER

SPECIFICATIONS

Basic Unit

Structural aluminum in high resistance quality 6061-T6 in gage of 3/8'' and cross members of 5/16''

Chassis

Manufactured in high resistance 1/4" carbon steel plate.

Kingpin Plate

Fabricated in AH-50 with a thickness of 3/8'' and Holland King Pin 2''

Paint

Epoxy background and finishing in polyurethane gray metallic color base applied in the chassis area

Interior painting with Tnemec epoxy primer or equivalent.

Ladder

Lateral ladder installed on the pilot side, constructed in high resistance aluminum and aisle throughout the tank

Fenders

Aluminum fenders installed in the front side and tray type on the back side

Landing Gear

One pair of Jost

Baffles

(3) Three 3/4 baffles, fabricated in aluminum of  1/4'' and man way of 20'' of diameter

Manhole

Three domes of 6 butterfly valves with a diameter of 20'' installed on the top part, one more on back head and dome for secondary scrubber with an eyehole in front and rear

Discharge

Two valves to charge and discharge, butterfly type of 4'' installed on the back part and vacuum relief valve installed on the top part

ABS

Antilock brake system brand Meritor-Wabco Model 4s/2m

Compartments

Single

Bumper

Backstop, fabricated in aluminum with lights of 4''

Tire Carrier

One

Electrical System

Regulatory electrical system with sealed harness and LED lights

Mud Flaps

Two in the front and two in the back, made in rubber with TYTAL scripted on them

Accessories

Conspicuity tape 2" wide retro-reflective tap according with US NHTSA rules.

Tool Box in aluminum with dimensions of 32'' x 26'' x 20'' and rack installed on the side of the box

20'' primary shut off in carbon steel with an aluminum neck and a 10'' secondary scrubber in carbon steel

Vacuum manometer of 2.5 installed on the back side of the tank

Four sliding style placard holders in aluminum to sustain indicatives; (2) mounted on the rings approximately 60'' above the landing gear area on both sides of the tank, (1) mounted in front of the tank on the curve side, (1) mounted on the rear part of the tank

Tires

(8) Tires 11R 24.5 16 ply, unit aligned with laser equipment

Rims

(8) Aluminum rims 7,300 lbs. 24.5 unimont.

Testing

Certified Hermetic, hydrostatic and pneumatic testing information provided with each tank. Int. MWPA 25 PSI, Test pressure 40 PSI, Loading temp 125 °F Max.
