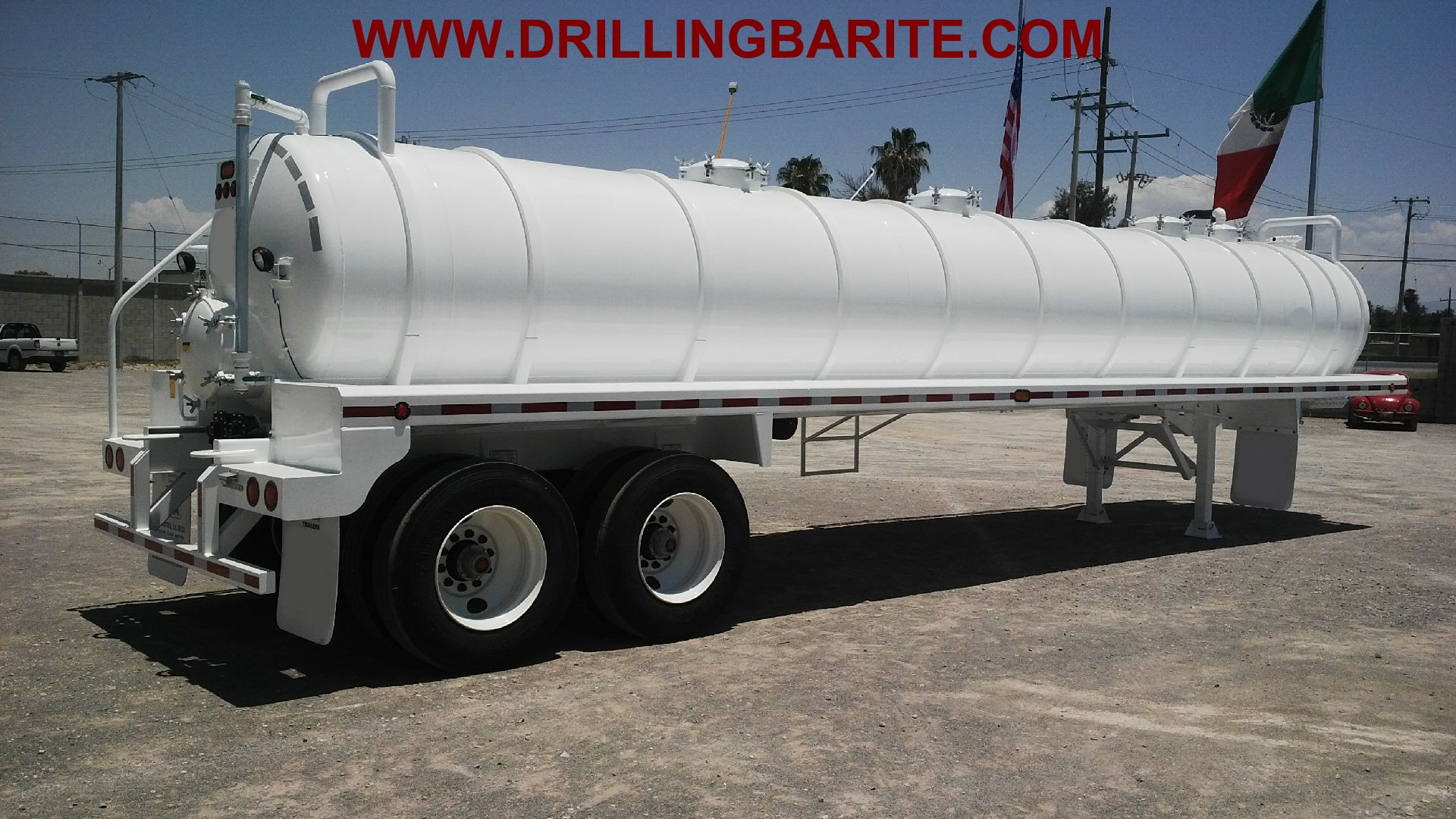

130 BBL VACUUM TANK

MODEL: VACUUM TANK TRAILER
CAPACITY: 5,500 GALLONS
MODEL YEAR: 2015

BRAND: EXA
DIMENSIONS: 42 FT LENGTH, 10.33 FT HEIGHT, 8.53 FT WIDTH

35´6 ½” INNER BRIDGE
COMMODITY: UNSPECIFIED OILFIELD FLUIDS
DESIGN PRESSURE: 25 PSI INTERNAL, 30 INHG EXTERNAL, 30 PSIG HYDROSTATIC TEST
SHELL: 1/4 STEEL
HEAD: 1/4 PL CODE ASME SHAPE
RING STIFFENER: 3/8 X 2 1/2 ROLLED RINGS EXTERNAL
COMPARTMENT: SINGLE
SUSPENSION: HENDRICKSON HT 300  30K
AXLES: 30,000 LBS ROUND W/OUTBOARD DRUMS (2)
WHEELS: STEEL DISC  HUB PILOT
TIRES: 11.00 X 24.5 RADIAL FIRESTONE FS 507

BRAKES: 6 1/2 X 7 WITH SPRING PARKING, AUTO SLACK, ABS BOTH AXLES
UPPER COUPLER: BOLT ON ADJUSTABLE
LANDING LEGS: 2 SPEED, HEAVY DUTY, HIGH CAPACITY LIFT
BUMPER: INCLUDED

HOSE TRAYS: ALL ALONG THE UNIT

CATWALK: ON DRIVERS SIDE OF THE UNIT

TOOL BOX: ON DRIVERS SIDE WITH SEALED DOOR
MUD FLAPS: ANTI SAIL

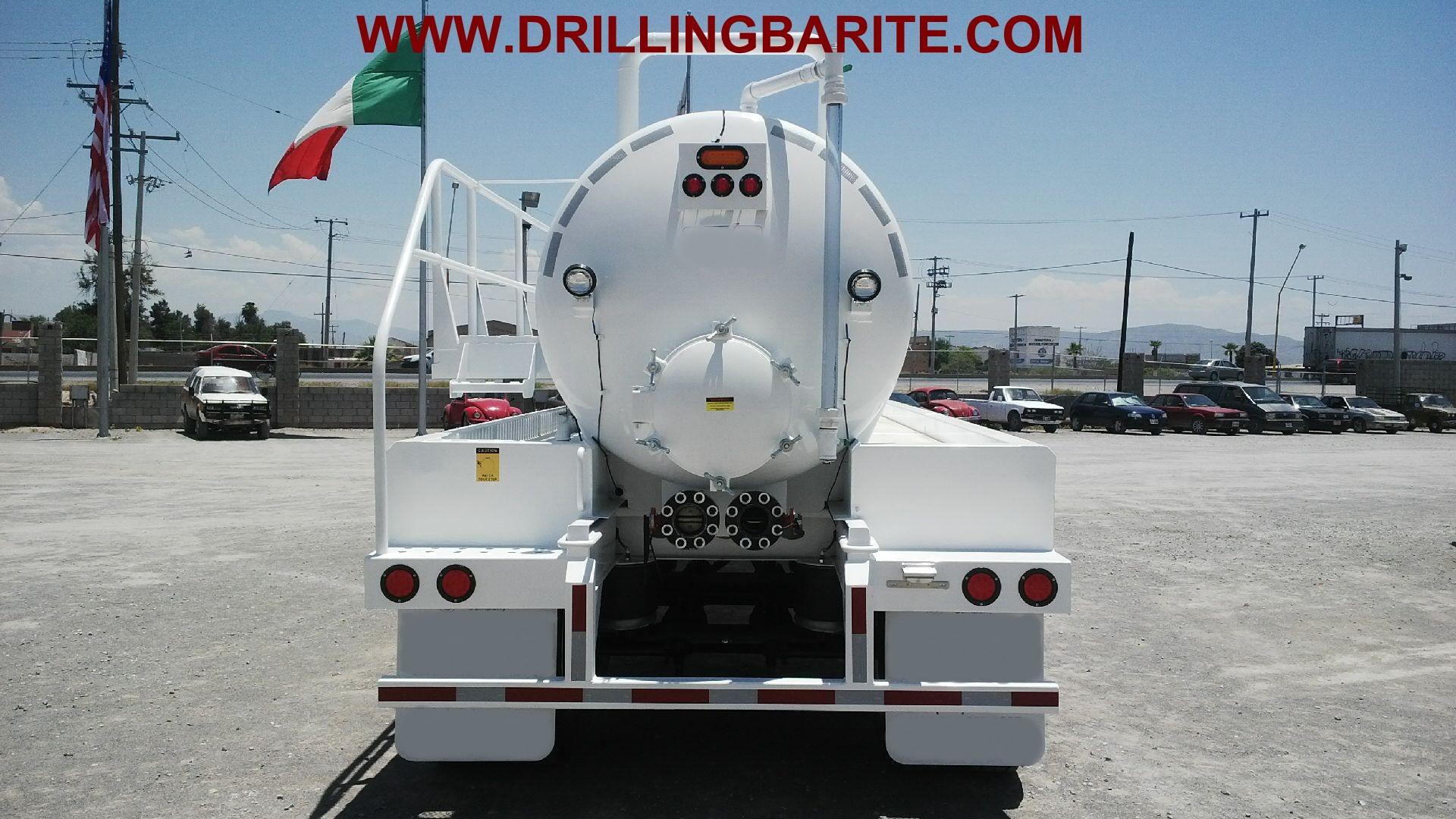

OUTLET: TWO (2) - 4” BUTTERFLY  VALVES AT REAR  OPENING AND CLOSE
BLOW DOWN LINE AT REAR

RELIEFS: 1 1/2” VACUUM RELIEF, 2” PRESSURE RELIEF, BOTH LOCATED AT TOP
MANWAYS: FOUR (4) LOCATED ON TOP, ONE (1) ON REAR HEAD , ALL 20” DOMED STYLE WITH PLATED SWING BOLTS AND WING NUTS
SHUT OFF: BALL TYPE PRIMARY IN FRONT MANWAY, BALL TYPE SECONDARY 12 GAL ON DRIVERS SIDE FRONT WITH DRAIN
LIGHTS: FULL DOT LIGHTS LED, SEALED LIGHTS, HARNESS AND JUNCTION BOX WITH TERMINAL STRIP AND TWO WORKLIGHTS ON REAR

SIGHT GLASS: 2” SIGHT GLASS FITTINGS IN REAR HEAD. 1 1/2” PLASTIC SIGHT GLASS TUBE INSTALLED IN REAR
HEAD WITH CLEAN OUT TEES AND 2” BALL VALVES TOP AND BOTTOM
COATING: ALL SURFACES WHITE METAL STEEL SAND BLAST, 2.5 MIL PROFILE (SP-10), INTERIOR LINED WITH CHEMICAL RESISTANT 100% SOLIDS EPOXY LINER, 9-12 MIL DRY FILM THICKNESS. EXTERIOR AND INTERIOR COATED WITH JONES – BLAIR  PAINT

All 100 % American materials
