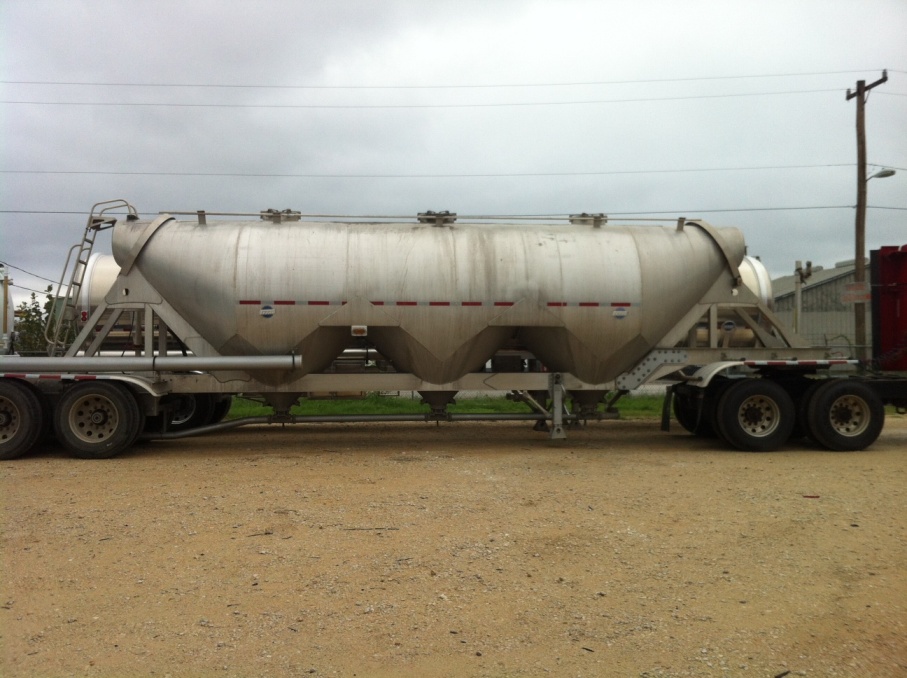

Hopper's body in aluminum 5454-H32 caliber 3/16" with diagonal reinforcements of PTR 4X4 in both endpoints and three inferiors cones of 1/4" (thickness), to transport low density solids.

Dimensions

Length 42' by 96" width.

Chassis

Made in structural aluminum 6061-T6 for front and back chassis.

Paint

On steel parts only.

Kingpin Plate

3/8" Carbon Steel grade 50 5/16" and King pin Holland 2".

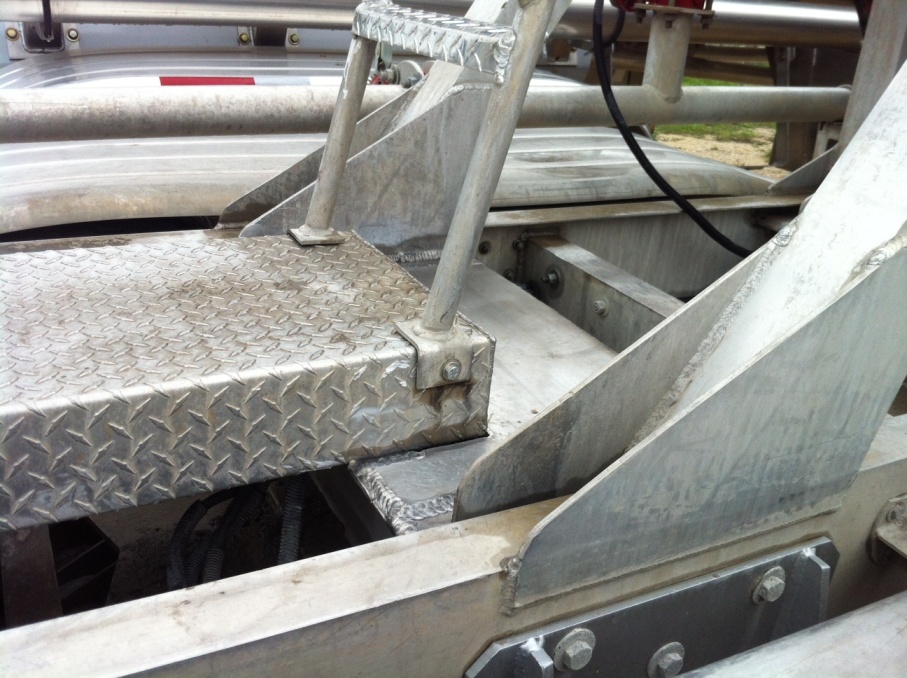

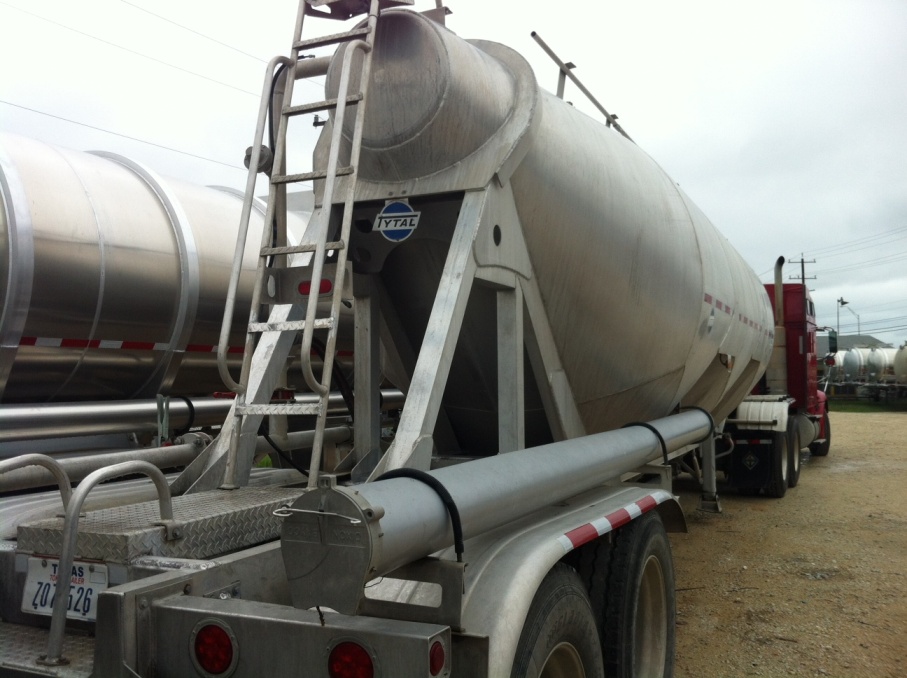

Ladder

Anti-Slip aluminum rear access ladder.

Air supply

Piping, one air line 3" placed on the left side of the tank from the front of the tank with check valve.

Fenders

2 Aluminum double contour rear fenders, and 2 front fenders.

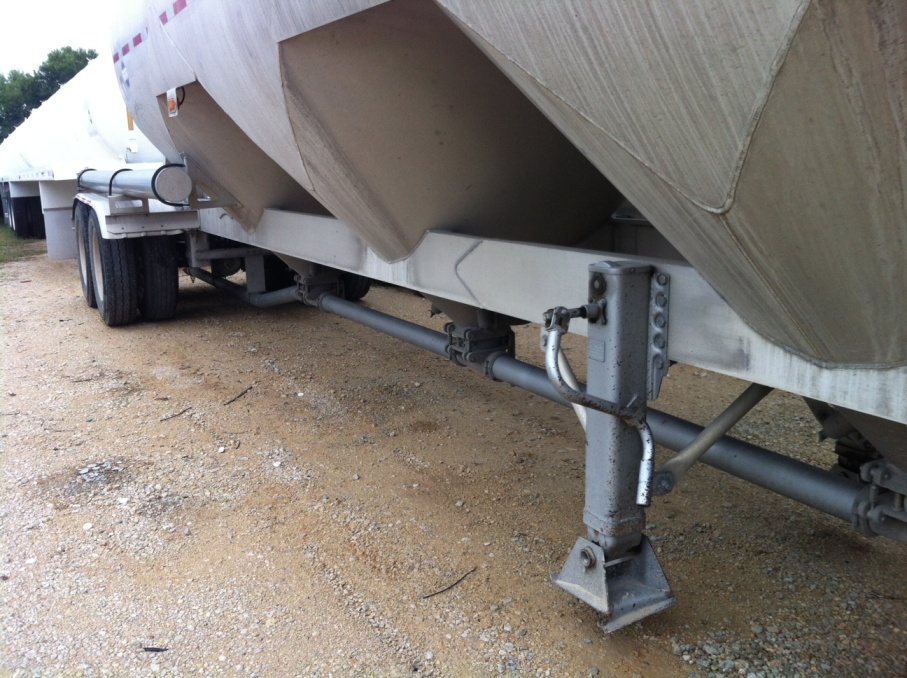

Landing Gear

One pair of Jost.

Baffles

2 Baffles 3/8" (thickness) type ring dividers.

Manhole

Three manhole 20" cast aluminum LM1310 Knappco brand, heavy duty set with 6 adjustable hold-downs.

Discharge

One discharge, hopper tee of 4" and three aluminum butterfly valve of 5".

ABS

16 x 7 easy change and system whit ABS Meritor-Wabco, modelo 2s/1m.

Hose Carrier

PVC 8" x 20' with back cover (hinged gate) in cast aluminum and two 8" hose carrier caps.

Electrical System

DOT LED lamp system.

Mud Flaps

Two mud guards printed with Tytal's Brand.

Accessories:

Four ball valve of 2".

Two aluminum butterfly valve of 3".

One pressure relief valve of 2".

Three sure flo aereator valves one line of 2".

Six sure flo aereator valves two line of 1½".

Three hose high pressure and temperature of 2".

Six hose high pressure and temperature of 1½".

Two 4" pressure liquid filled gauges.
